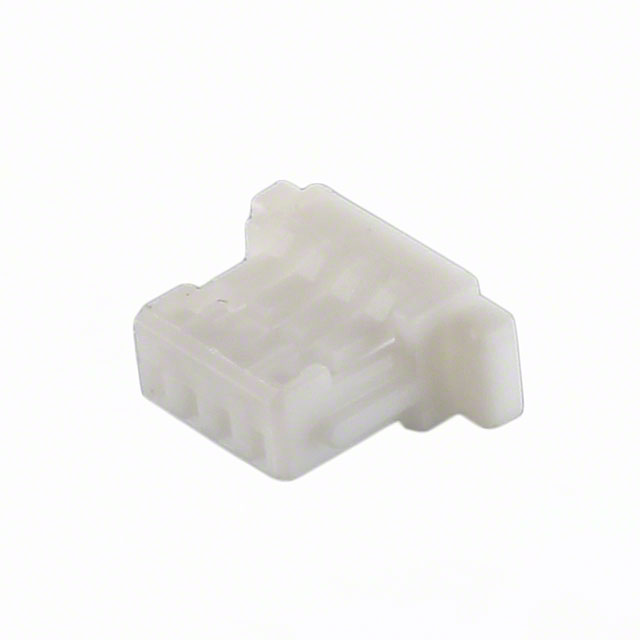

M40-1100400

Manufacturer :

Harwin

Product Category :

Rectangular Connector Housings

Contact Design :

PREASSEM CONN

Housing Material :

Polybutylene

Connector Type :

Receptacle

Mounting Type :

Free Hanging (In-Line)

Depth :

5mm

Length :

7mm

Number of Rows :

1

DIN Conformance :

No

REACH SVHC :

No SVHC

Body/Shell Style :

PLUG

IEC Conformance :

No

Published :

2004

Pbfree Code :

yes

Rated Current (Signal) :

1A

Total Number of Contacts :

4

Number of Positions :

4

Orientation :

Straight

Contact Termination :

Crimp

Series :

M40

Contact Resistance :

20mOhm

Material :

Thermoplastic

Radiation Hardening :

No

Factory Lead Time :

12 Weeks

Note :

Contacts Not Included

Filter Feature :

No

Mixed Contacts :

No

Max Current Rating :

1A

Reference Standard :

UL

Voltage - Rated AC :

50V

Reliability :

COMMERCIAL

MIL Conformance :

No

Max Voltage Rating (AC) :

50V

Width :

2.8mm

Mount :

Cable, Free Hanging, PCB

Package / Case :

SIL

Packaging :

Bulk

Polarization Key :

POLARIZED HOUSING

Option :

GENERAL PURPOSE

Current Rating :

1A

RoHS Status :

ROHS3 Compliant

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Flammability Rating :

UL94 V-0

Pitch :

0.039 1.00mm

Dielectric Withstanding Voltage :

500VAC V

Insulation Resistance :

100MOhm

Min Operating Temperature :

-25°C

Max Operating Temperature :

85°C

Contact Type :

Female Socket
