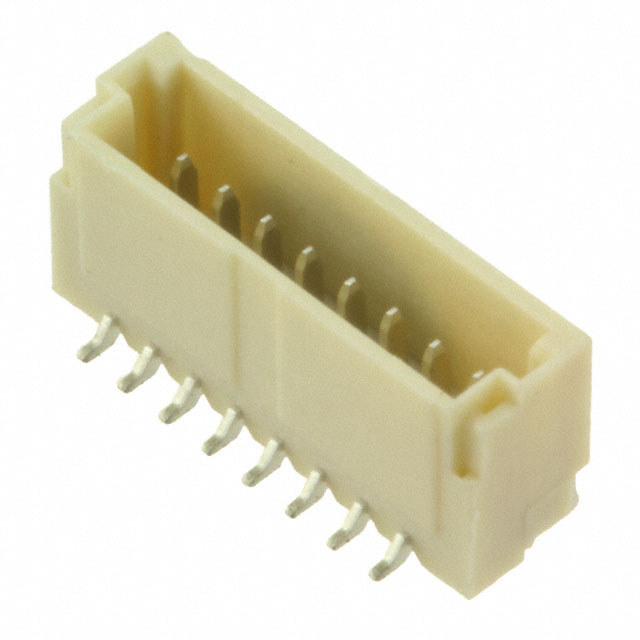

M40-3010846

Manufacturer :

Harwin

Product Category :

Headers, Male Pins

Contact Material :

Phosphor Bronze

Insulation Resistance :

100MOhm

Shrouding :

Shrouded - 4 Wall

Length :

10mm

Connector Type :

Header

Fastening Type :

Detent Lock

Radiation Hardening :

No

Series :

M40

Feature :

Pick and Place, Solder Retention

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Style :

Board to Cable/Wire

DIN Conformance :

No

Insulation Height :

0.169 4.30mm

Contact Shape :

RECTANGULAR

Insulation Material :

Polyamide (PA9T), Nylon 9T

Max Current Rating :

1A

Depth :

3.6mm

Number of Rows :

1

Published :

2005

Factory Lead Time :

13 Weeks

Flammability Rating :

UL94 V-0

Number of Positions Loaded :

All

Max Voltage Rating (AC) :

50V

Pitch - Mating :

0.039 1.00mm

UL Flammability Code :

94V-0

Number of Positions :

8

Termination :

Solder

Insulation Color :

Natural

MIL Conformance :

No

Housing Material :

Nylon

Contact Finish - Mating :

Tin

Mixed Contacts :

No

Mounting Type :

Surface Mount

REACH SVHC :

No SVHC

Gender :

Male

Material Flammability Rating :

UL94 V-0

Contact Resistance :

30mOhm

Material :

Thermoplastic

ECCN Code :

EAR99

Operating Temperature :

-25°C~85°C

IEC Conformance :

No

Voltage - Rated AC :

50V

Current Rating :

1A

Contact Type :

Male Pin

Orientation :

Straight

Additional Feature :

Top Entry

Filter Feature :

No

RoHS Status :

ROHS3 Compliant

Package / Case :

SIL

Mount :

PCB, Surface Mount

Option :

GENERAL PURPOSE

Total Number of Contacts :

8

Packaging :

Bulk
