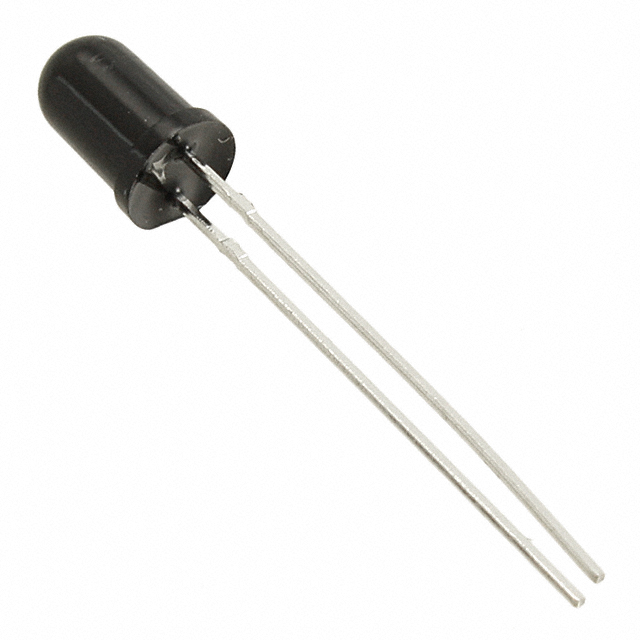

LTR-323DB
Or copy the link below:
- Mfr.Part #
- LTR-323DB
- Manufacturer
- LITEON
- Package / Case
- Radial
- Datasheet
- Download
- Description
- SENSOR PHOTODIODE 900NM RADIAL
- Stock
- 248
- In Stock ：
- 248
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- LITEON
- Product Category :
- Optical Sensors - Photodiodes
- Infrared Range :
- yes
- Mounting Type :
- Through Hole
- Package / Case :
- Radial
- Orientation :
- Top View
- Dark Current :
- 30nA
- Shape :
- Round
- Current - Dark (Typ) :
- 30nA Max
- Viewing Angle :
- 60°
- Reverse Voltage (DC) :
- 30V
- Lead Free :
- Lead Free
- Fall Time (Typ) :
- 50 ns
- Number of Functions :
- 1
- Published :
- 2010
- Rise Time :
- 50ns
- Configuration :
- Single
- Reach Compliance Code :
- Unknown
- Power Dissipation :
- 150mW
- Light Current-Nom :
- 0.013mA
- Output Power :
- 150mW
- Wavelength - Peak :
- 940 nm
- HTS Code :
- 8541.40.60.50
- Size :
- 5mm
- Packaging :
- Bulk
- Factory Lead Time :
- 12 Weeks
- Number of Pins :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Max Power Dissipation :
- 150mW
- Collector Emitter Breakdown Voltage :
- 30V
- Operating Temperature :
- -40°C~85°C
- RoHS Status :
- ROHS3 Compliant
- Datasheets
- LTR-323DB
Through Hole -40°C~85°C Bulk Radial 30nA
LTR-323DB Overview
The Bulk protects these photodiodes from damage. In order to ensure safety, the photodiodes are packaged in Radial packages. 2 pins are present on the photodiodes. During a circuit, the photodiodes could release 150mW heat. Generally, the maximum amount of heat released by photodiodes is 150mW. Photodiodes can work properly at 30V reverse voltage in the DC circuit. Despite the absence of light, photodiodes make 30nA current.
LTR-323DB Features
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Operating Temperature: -40°C~85°C
Packaging: Bulk
Mount: Through Hole
Viewing Angle: 60°
LTR-323DB Applications
There are a lot of Lite-On Inc.
LTR-323DB Photodiodes applications.
- Photo interrupters
- Shaft encoders
- Electronic Equipment
- Industrial Automation
- Machine Controls
- Light Barriers
- Vision Controls
- Measurement Levelling
- High speed photo detectors
- Health Monitoring
