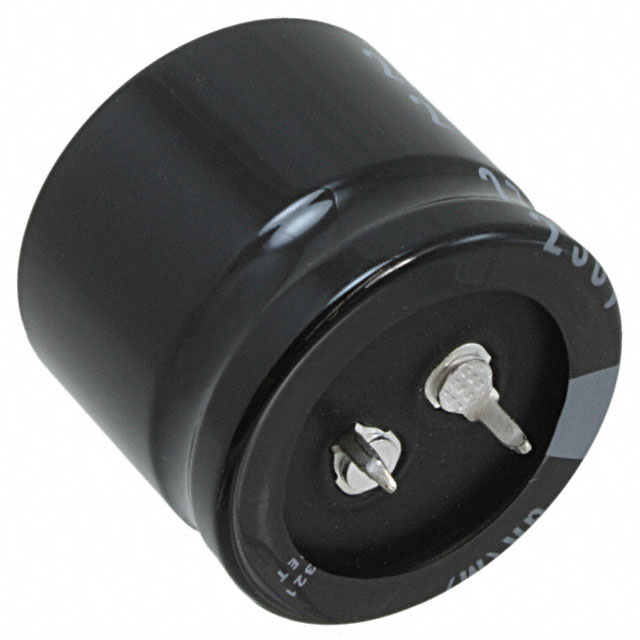

LGR2E331MELB25

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Operating Temperature :

-40°C~105°C

Radiation Hardening :

No

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Tolerance :

±20%

Terminal Finish :

Matte Tin (Sn)

Voltage :

250V

Ripple Current @ Low Frequency :

1.2A @ 120Hz

JESD-609 Code :

e3

Number of Terminations :

2

Package / Case :

Radial, Can - Snap-In

Polarization :

Polar

Pbfree Code :

yes

Voltage - Rated DC :

250V

Capacitance :

330µF

Height Seated (Max) :

1.063 27.00mm

Life (Hours) :

10000 hours

Packaging :

Bulk

Test Frequency :

120Hz

Lifetime @ Temp :

10000 Hrs @ 105°C

RoHS Status :

ROHS3 Compliant

Ripple Current @ High Frequency :

1.8A @ 50kHz

Lead Diameter :

800 µm

Applications :

GENERAL PURPOSE

Mounting Type :

Through Hole

Mount :

PCB, Through Hole

Termination :

Snap in

Leakage Current :

860μA

Lead Spacing :

0.394 10.00mm

ECCN Code :

EAR99

Height :

25mm

Size / Dimension :

1.181Dia 30.00mm

Series :

LGR

Dielectric Material :

ALUMINUM (WET)

Dissipation Factor :

0.15 %

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Diameter :

30mm

Ripple Current :

1.2A

Lead Pitch :

10mm

Published :

2009

Factory Lead Time :

19 Weeks

Number of Pins :

2
