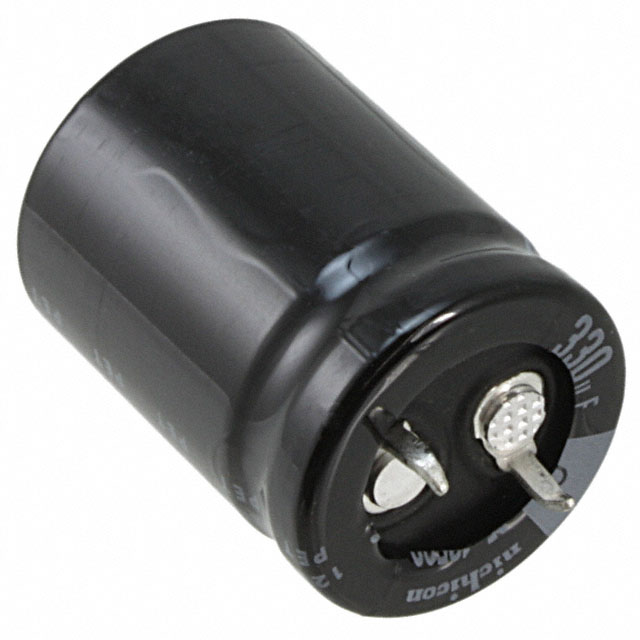

LGR2D271MELZ30

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Package / Case :

Radial, Can - Snap-In

Mount :

Through Hole

Tolerance :

±20%

Diameter :

22mm

Life (Hours) :

10000 hours

Dissipation Factor :

0.15 %

Dielectric Material :

ALUMINUM (WET)

Lead Pitch :

10.0076mm

Terminal Finish :

Matte Tin (Sn)

Height Seated (Max) :

1.260 32.00mm

Leakage Current :

690μA

Ripple Current :

1.1A

Series :

LGR

Size / Dimension :

0.866Dia 22.00mm

JESD-609 Code :

e3

Operating Temperature :

-40°C~105°C

Termination :

Snap in

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Ripple Current @ Low Frequency :

1.1A @ 120Hz

Published :

2015

Polarization :

Polar

Mounting Type :

Through Hole

Pbfree Code :

yes

Number of Pins :

2

Terminal Pitch :

10mm

Factory Lead Time :

19 Weeks

Applications :

GENERAL PURPOSE

Packaging :

Bulk

Length :

30mm

Capacitance :

270μF

Lifetime @ Temp :

10000 Hrs @ 105°C

ECCN Code :

EAR99

Ripple Current @ High Frequency :

1.65A @ 50kHz

Number of Terminations :

2

Voltage - Rated DC :

200V

Test Frequency :

120Hz

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

RoHS Status :

ROHS3 Compliant

Lead Spacing :

0.394 10.00mm
