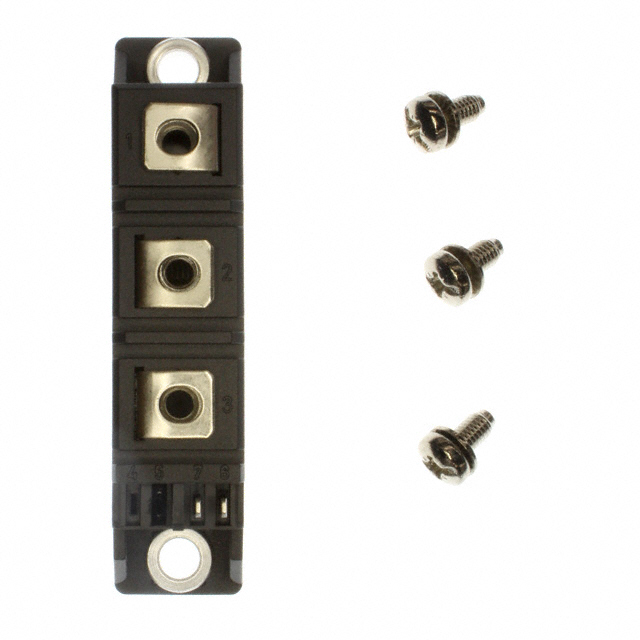

IRKL56/04A

Manufacturer :

Vishay

Product Category :

Thyristors - SCRs - Modules

Reach Compliance Code :

Unknown

Holding Current-Max :

200mA

HTS Code :

8541.30.00.80

Desc. of Screw Terminals :

A-K-AK

Current - Gate Trigger (Igt) (Max) :

150mA

Peak Reflow Temperature (Cel) :

225

Additional Feature :

UL APPROVED

Current - Hold (Ih) (Max) :

200mA

Voltage - Off State :

400V

Configuration :

SINGLE WITH BUILT-IN DIODE

Surface Mount :

No

Operating Temperature :

-40°C~125°C TJ

Number of Elements :

1

Current - Non Rep. Surge 50, 60Hz (Itsm) :

1310A 1370A

Number of SCRs, Diodes :

1 SCR, 1 Diode

Packaging :

Bulk

Trigger Device Type :

SCR

Current - On State (It (AV)) (Max) :

60A

Structure :

Series Connection - SCR/Diode

Case Connection :

Isolated

Desc. of Quick-Connects :

G-GR

Published :

2002

Number of Terminations :

5

On-State Current-Max :

60000A

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Terminal Position :

UPPER

Qualification Status :

Not Qualified

Terminal Form :

UNSPECIFIED

Non-Repetitive Pk On-state Cur :

1520 A

Base Part Number :

KL56

JEDEC-95 Code :

TO-240AA

Mounting Type :

Chassis Mount

Pin Count :

5

Leakage Current (Max) :

15mA

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Voltage - Gate Trigger (Vgt) (Max) :

2.5V

Repetitive Peak Off-state Voltage :

400V

Package / Case :

ADD-A-PAK (3 + 2)

RoHS Status :

Non-RoHS Compliant

Repetitive Peak Reverse Voltage :

400V

Current - On State (It (RMS)) (Max) :

135A

JESD-30 Code :

R-XUFM-X5
