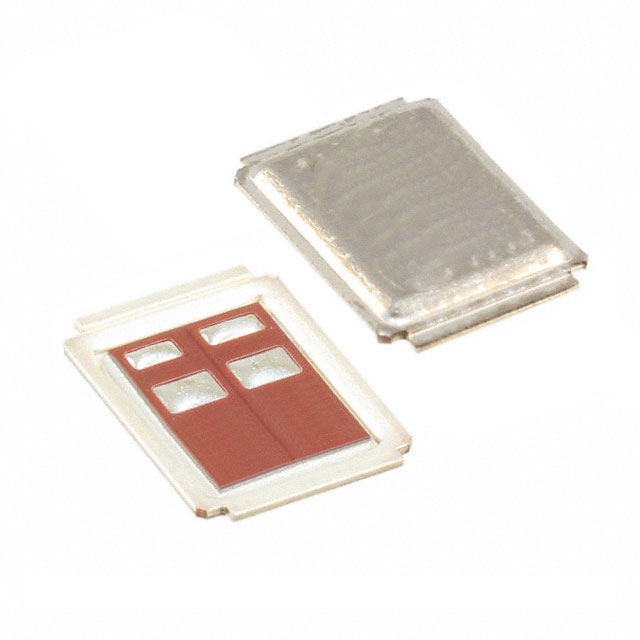

IRF40DM229
Or copy the link below:
- Mfr.Part #
- IRF40DM229
- Manufacturer
- Infineon Technologies
- Package / Case
- DirectFET™ Isometric MF
- Datasheet
- Download
- Description
- MOSFET N-CH 40V 159A DIRECTFET
- Stock
- 4
- In Stock ：
- 4
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Infineon Technologies
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Drain to Source Voltage (Vdss) :
- 40V
- ECCN Code :
- EAR99
- Input Capacitance (Ciss) (Max) @ Vds :
- 5317pF @ 25V
- Gate Charge (Qg) (Max) @ Vgs :
- 161nC @ 10V
- Package / Case :
- DirectFET™ Isometric MF
- Series :
- StrongIRFET™
- Drive Voltage (Max Rds On,Min Rds On) :
- 6V 10V
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 12 Weeks
- Current - Continuous Drain (Id) @ 25°C :
- 159A Tc
- Vgs (Max) :
- ±20V
- Operating Temperature :
- -55°C~150°C TJ
- Peak Reflow Temperature (Cel) :
- NOT SPECIFIED
- Vgs(th) (Max) @ Id :
- 3.9V @ 100µA
- FET Type :
- N-Channel
- Published :
- 2008
- Time@Peak Reflow Temperature-Max (s) :
- NOT SPECIFIED
- Rds On (Max) @ Id, Vgs :
- 1.85m Ω @ 97A, 10V
- Mounting Type :
- Surface Mount
- Packaging :
- Tape and Reel (TR)
- Power Dissipation-Max :
- 83W Tc
- Datasheets
- IRF40DM229
N-Channel Tape & Reel (TR) 1.85m Ω @ 97A, 10V ±20V 5317pF @ 25V 161nC @ 10V 40V DirectFET™ Isometric MF
IRF40DM229 Overview
CI refers to the capacitance between two input terminals on an op amp with either input grounded, and this device's maximum input capacitance is 5317pF @ 25V.The transistor must receive a 40V drain to source voltage (Vdss) in order to function.In addition to reducing power consumption, this device uses drive voltage (6V 10V).
IRF40DM229 Features
a 40V drain to source voltage (Vdss)
IRF40DM229 Applications
There are a lot of Infineon Technologies
IRF40DM229 applications of single MOSFETs transistors.
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
- Industrial Power Supplies
- PFC stages, hard switching PWM stages and resonant switching
- PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
- Lighting, Server, Telecom and UPS.
