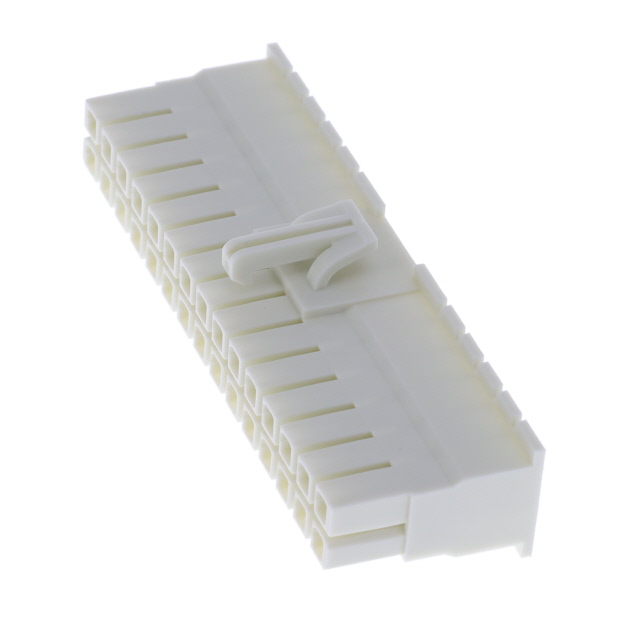

IPBD-15-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

Body Breadth :

0.478 inch

REACH SVHC :

No SVHC

DIN Conformance :

No

Empty Shell :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Wire Gauge (Max) :

24 AWG

Pbfree Code :

yes

Filter Feature :

No

Published :

2013

Series :

Power Mate® IPBD

Factory Lead Time :

3 Weeks

Gender :

Male

Pitch :

0.165 4.20mm

Total Number of Contacts :

30

Row Spacing :

0.165 (4.20mm)

Mounting Option 1 :

POLARIZED LCK

Number of Positions :

30

Reliability :

COMMERCIAL

Mounting Type :

Free Hanging (In-Line)

Contact Termination :

Crimp

Number of Rows :

2

Mounting Option 2 :

LOCKING

Body/Shell Style :

PLUG

IEC Conformance :

No

Contact Material :

Bronze

Orientation :

Straight

MIL Conformance :

No

Number of Conductors :

ONE

Contact Type :

Female Socket

Shell Material :

VALOX 457

Contact Plating :

Tin

Fastening Type :

Latch Lock

Wire Gauge (Min) :

16 AWG

Length :

63.88mm

Option :

GENERAL PURPOSE

Note :

Contacts Not Included

Packaging :

Tube

Min Operating Temperature :

-40°C

Mixed Contacts :

No

Radiation Hardening :

No

Connector Type :

Receptacle

Max Voltage Rating (AC) :

600V

Reference Standard :

UL

Max Operating Temperature :

105°C

Depth :

19.56mm

RoHS Status :

ROHS3 Compliant

JESD-609 Code :

e3
