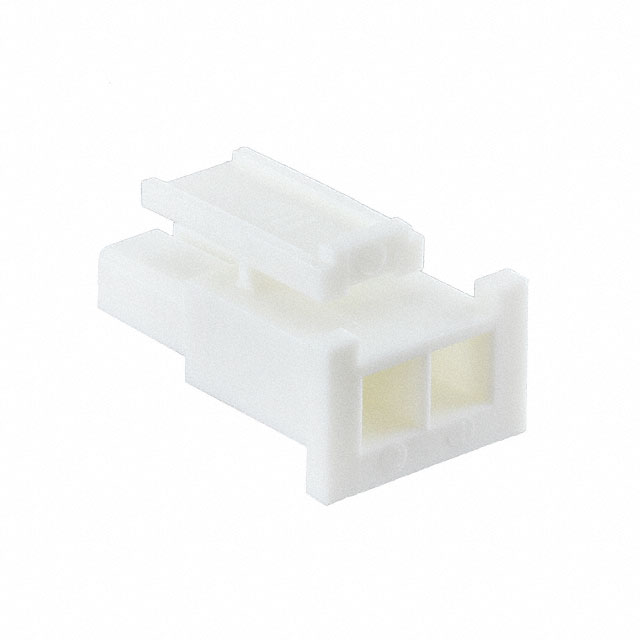

IPBD-02-S
Or copy the link below:
- Mfr.Part #
- IPBD-02-S
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 2POS 4.20MM
- Stock
- 7,040
- In Stock ：
- 7,040
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Rectangular Connector Housings
- Empty Shell :
- No
- Contact Plating :
- Tin
- Pbfree Code :
- yes
- Color :
- Beige
- Published :
- 2002
- IEC Conformance :
- No
- Number of Rows :
- 1
- MIL Conformance :
- No
- DIN Conformance :
- No
- Mixed Contacts :
- No
- Depth :
- 19.56mm
- Connector Type :
- Receptacle
- Mounting Type :
- Free Hanging (In-Line)
- RoHS Status :
- ROHS3 Compliant
- Radiation Hardening :
- No
- Pitch :
- 0.165 4.20mm
- Contact Material :
- Bronze
- Wire Gauge (Max) :
- 24 AWG
- Note :
- Contacts Not Included
- Orientation :
- Straight
- Min Operating Temperature :
- -40°C
- Packaging :
- Tube
- Contact Termination :
- Crimp
- Shell Material :
- VALOX 457
- Total Number of Contacts :
- 2
- Max Operating Temperature :
- 105°C
- REACH SVHC :
- No SVHC
- Lead Free :
- Lead Free
- Wire Gauge (Min) :
- 16 AWG
- Contact Type :
- Female Socket
- Length :
- 9.39mm
- Factory Lead Time :
- 3 Weeks
- Series :
- Power Mate® IPBD
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- JESD-609 Code :
- e3
- Option :
- GENERAL PURPOSE
- Max Voltage Rating (AC) :
- 600V
- Filter Feature :
- No
- Fastening Type :
- Latch Lock
- Number of Positions :
- 2
- Mount :
- Free Hanging
- Datasheets
- IPBD-02-S
IPBD-02-S Documents
1 Rows Receptacle Tube Beige 2 Positions Free Hanging (In-Line) Female Socket Crimp Power Mate® IPBD
IPBD-02-S Overview
Packaging for this item is Receptacle.There is a mounting type of Free Hanging (In-Line) for this device.It is necessary to use a Tube case for packaging the product.This product is part of the Power Mate® IPBD Series.Free Hanging is used to mount the part.
IPBD-02-S Features
Power Mate® IPBD series
IPBD-02-S Applications
There are a lot of Samtec Inc.
IPBD-02-S Rectangular Connectors applications.
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
