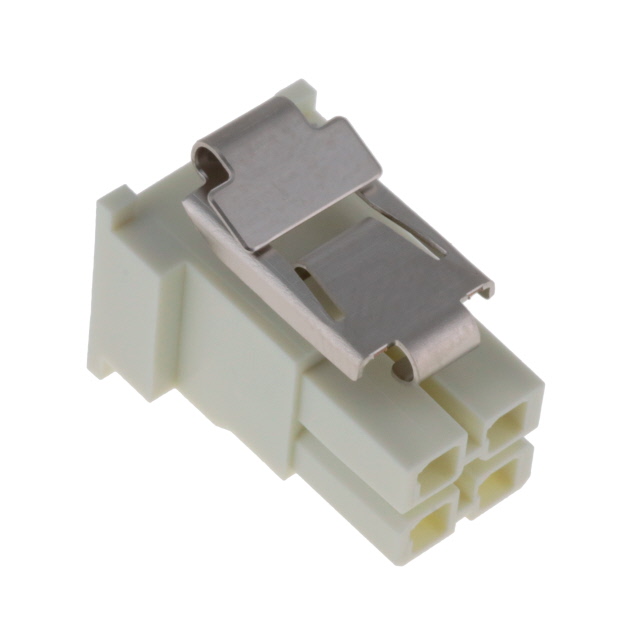

IPBD-02-D-K-M
Or copy the link below:
- Mfr.Part #
- IPBD-02-D-K-M
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 4POS 4.20MM
- Stock
- 989
- In Stock ：
- 989
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Rectangular Connector Housings
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- Shell Material :
- POLYAMIDE66
- Contact Termination :
- Crimp
- Mount :
- CABLE
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Reference Standard :
- UL, CSA
- Note :
- Contacts Not Included
- Reliability :
- COMMERCIAL
- Body Length or Diameter :
- 0.37 inch
- Contact Type :
- Female Socket
- Pitch :
- 0.165 4.20mm
- RoHS Status :
- ROHS3 Compliant
- Factory Lead Time :
- 3 Weeks
- Series :
- Power Mate® IPBD
- Operating Temperature (Min) :
- -55°C
- Filter Feature :
- No
- Feature :
- Pick and Place, Polarizing Key
- Packaging :
- Bulk
- Insulator Color :
- Black
- IEC Conformance :
- No
- Body Depth :
- 0.776 inch
- MIL Conformance :
- No
- Number of Rows :
- 2
- Contact Finish - Mating :
- NOT SPECIFIED
- Number of Conductors :
- ONE
- Number of Positions :
- 4
- Termination Type :
- Wire
- Connector Type :
- Receptacle
- Empty Shell :
- No
- Fastening Type :
- Latch Lock
- Additional Feature :
- LATCHED, POLARIZED
- Contact Material :
- COPPER ALLOY
- Mounting Type :
- Free Hanging (In-Line)
- Option :
- GENERAL PURPOSE
- DIN Conformance :
- No
- Body/Shell Style :
- PLUG
- Total Number of Contacts :
- 4
- Row Spacing :
- 0.165 (4.20mm)
- Operating Temperature (Max) :
- 105°C
- Mixed Contacts :
- No
- Datasheets
- IPBD-02-D-K-M
IPBD-02-D-K-M Documents
2 Rows Receptacle Bulk 4 Positions Free Hanging (In-Line) Female Socket Crimp Power Mate® IPBD
IPBD-02-D-K-M Overview
The product is packaged in Receptacle.This device is mounted in the Free Hanging (In-Line) position.It has been determined that a Bulk case is necessary to package the product.There is a product in the Power Mate® IPBD Series.To name a few, there is also LATCHED, POLARIZED.There are a number of advantages to its Pick and Place, Polarizing Key feature.Part Cable is mounted to the part.
IPBD-02-D-K-M Features
Power Mate® IPBD series
IPBD-02-D-K-M Applications
There are a lot of Samtec Inc.
IPBD-02-D-K-M Rectangular Connectors applications.
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
