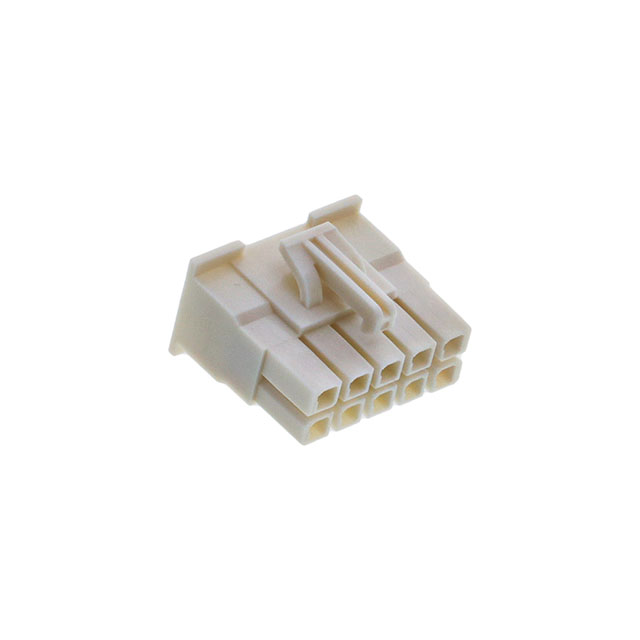

IPBD-05-D
Or copy the link below:
- Mfr.Part #
- IPBD-05-D
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN RCPT HSG 10POS 4.20MM
- Stock
- 1,922
- In Stock ：
- 1,922
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Rectangular Connector Housings
- RoHS Status :
- ROHS3 Compliant
- Packaging :
- Bulk
- Wire Gauge (Max) :
- 24 AWG
- Number of Rows :
- 2
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Number of Positions :
- 10
- Radiation Hardening :
- No
- Contact Plating :
- Tin
- Note :
- Contacts Not Included
- Contact Termination :
- Crimp
- Max Voltage Rating (AC) :
- 600V
- Connector Type :
- Receptacle
- Length :
- 21.97mm
- REACH SVHC :
- No SVHC
- HTS Code :
- 8536.69.40.30
- Wire Gauge (Min) :
- 16 AWG
- ECCN Code :
- EAR99
- Published :
- 2012
- Contact Material :
- Bronze
- Row Spacing :
- 0.165 (4.20mm)
- Depth :
- 19.56mm
- Orientation :
- Straight
- Fastening Type :
- Latch Lock
- Mounting Type :
- Free Hanging (In-Line)
- Series :
- Power Mate® IPBD
- Contact Type :
- Female Socket
- Min Operating Temperature :
- -40°C
- Max Operating Temperature :
- 105°C
- Factory Lead Time :
- 3 Weeks
- Pitch :
- 0.165 4.20mm
- Datasheets
- IPBD-05-D
2 Rows Receptacle Bulk 10 Positions Free Hanging (In-Line) Female Socket Crimp Power Mate® IPBD
IPBD-05-D Overview
Packaging is Receptacle.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the Power Mate® IPBD Series, it can be found in this category.
IPBD-05-D Features
Power Mate® IPBD series
IPBD-05-D Applications
There are a lot of Samtec Inc.
IPBD-05-D Rectangular Connectors applications.
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
- Blowers
- Control panels
- Electrical substations
- Energy efficient lighting (LED)
- LED municipal outdoor and street lighting
