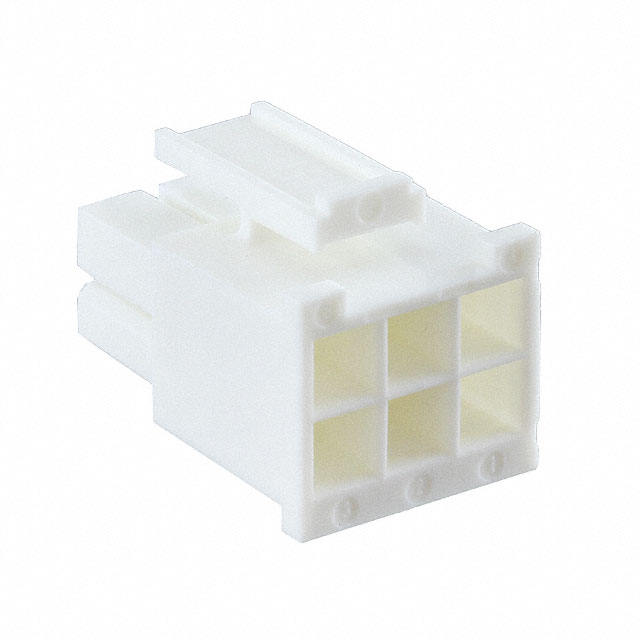

IPBD-03-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

Mounting Option 2 :

LOCKING

IEC Conformance :

No

Row Spacing :

0.165 (4.20mm)

Number of Conductors :

ONE

Series :

Power Mate® IPBD

Reliability :

COMMERCIAL

Filter Feature :

No

Note :

Contacts Not Included

Pbfree Code :

yes

Moisture Sensitivity Level (MSL) :

Not Applicable

Body Breadth :

0.478 inch

MIL Conformance :

No

Contact Material :

NOT SPECIFIED

RoHS Status :

ROHS3 Compliant

Total Number of Contacts :

6

Operating Temperature (Min) :

-40°C

Fastening Type :

Latch Lock

Option :

GENERAL PURPOSE

JESD-609 Code :

e3

Contact Finish - Mating :

TIN OVER NICKEL (50)

Packaging :

Bulk

Contact Type :

Female Socket

Empty Shell :

No

DIN Conformance :

No

Mounting Type :

Free Hanging (In-Line)

Body/Shell Style :

PLUG

Shell Material :

VALOX 457

Mounting Option 1 :

POLARIZED LCK

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Connector Type :

Receptacle

Published :

2007

Contact Termination :

Crimp

Operating Temperature (Max) :

105°C

Reference Standard :

UL

Number of Positions :

6

Mixed Contacts :

No

Pitch :

0.165 4.20mm

Number of Rows :

2

Body Length or Diameter :

0.535 inch

Factory Lead Time :

3 Weeks
