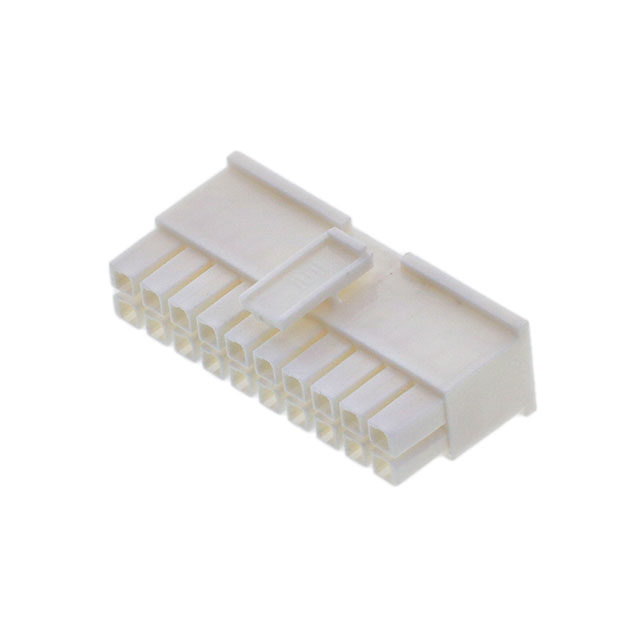

IPBD-10-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

DIN Conformance :

No

Body/Shell Style :

PLUG

Mixed Contacts :

No

Mounting Option 1 :

POLARIZED LCK

Mounting Type :

Free Hanging (In-Line)

Published :

2014

Pitch :

0.165 4.20mm

RoHS Status :

ROHS3 Compliant

Filter Feature :

No

JESD-609 Code :

e3

Contact Type :

Female Socket

Contact Material :

Bronze

Shell Material :

VALOX 457

Fastening Type :

Latch Lock

Operating Temperature (Min) :

-40°C

Pbfree Code :

yes

Note :

Contacts Not Included

Orientation :

Straight

Connector Type :

Receptacle

Number of Rows :

2

Series :

Power Mate® IPBD

Empty Shell :

No

Contact Plating :

Tin

Mounting Option 2 :

LOCKING

Reliability :

COMMERCIAL

Number of Positions :

20

Reference Standard :

UL

IEC Conformance :

No

Total Number of Contacts :

20

Number of Conductors :

ONE

Option :

GENERAL PURPOSE

Contact Termination :

Crimp

Gender :

Male

Body Breadth :

0.478 inch

Packaging :

Bulk

Body Length or Diameter :

1.69 inch

Operating Temperature (Max) :

105°C

REACH SVHC :

No SVHC

Factory Lead Time :

3 Weeks

Row Spacing :

0.165 (4.20mm)

MIL Conformance :

No

Radiation Hardening :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)
