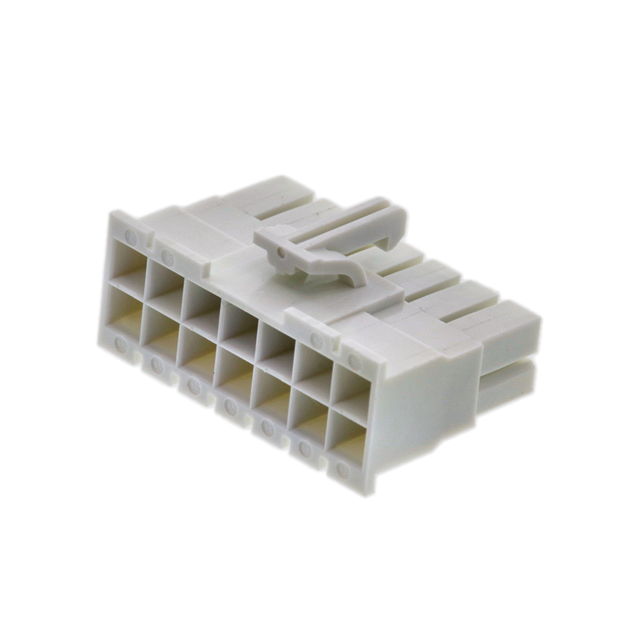

IPBD-07-D

Manufacturer :

Samtec, Inc.

Product Category :

Rectangular Connector Housings

Number of Rows :

2

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

IEC Conformance :

No

Depth :

19.56mm

Connector Type :

Receptacle

Contact Termination :

Crimp

Pbfree Code :

yes

Total Number of Contacts :

14

Empty Shell :

No

Shell Material :

VALOX 457

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

RoHS Status :

ROHS3 Compliant

Contact Type :

Female Socket

Pitch :

0.165 4.20mm

Wire Gauge (Min) :

16 AWG

Wire Gauge (Max) :

24 AWG

Orientation :

Straight

MIL Conformance :

No

Mount :

Free Hanging

Body/Shell Style :

PLUG

Additional Feature :

SHROUDED

Mounting Type :

Free Hanging (In-Line)

Reliability :

COMMERCIAL

Radiation Hardening :

No

Option :

GENERAL PURPOSE

Contact Finish - Mating :

TIN OVER NICKEL (50)

Number of Positions :

14

Filter Feature :

No

Max Voltage Rating (AC) :

600V

DIN Conformance :

No

Length :

30.35mm

Min Operating Temperature :

-40°C

Body Breadth :

0.478 inch

Max Operating Temperature :

105°C

Row Spacing :

0.165 (4.20mm)

Gender :

FEMALE

Published :

2012

Factory Lead Time :

1 Weeks

Reference Standard :

UL

JESD-609 Code :

e3

Note :

Contacts Not Included

Fastening Type :

Latch Lock

Series :

Power Mate® IPBD

Mixed Contacts :

No

Color :

Beige

Number of Conductors :

ONE

Packaging :

Bulk
