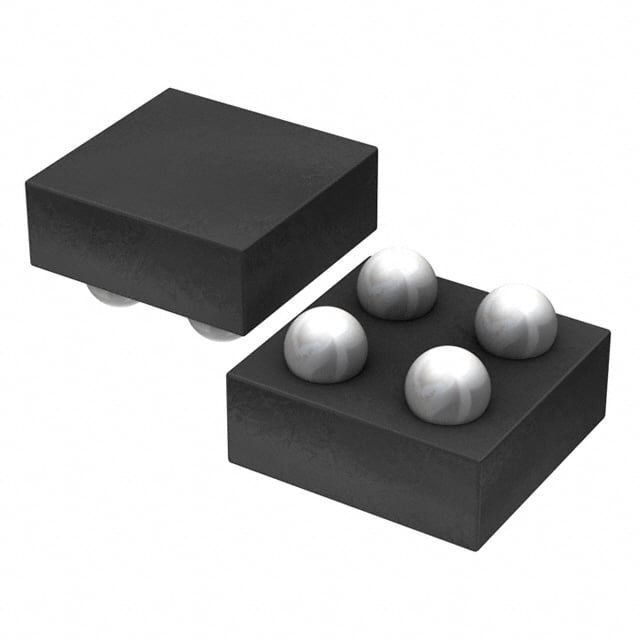

BH25RB1WGUT-E2

Manufacturer :

ROHM Semiconductor

Product Category :

Voltage Regulators - Linear

Mount :

Surface Mount

Max Power Dissipation :

530mW

Protection Features :

Over Current, Over Temperature

Terminal Pitch :

0.5mm

Package / Case :

4-WFBGA, CSPBGA

Dropout Voltage :

100mV

Number of Regulators :

1

Output Type :

FIXED

Current - Quiescent (Iq) :

72μA

Lead Free :

Lead Free

Number of Pins :

4

Published :

2009

Qualification Status :

Not Qualified

Terminal Position :

BOTTOM

Contact Plating :

Copper, Silver, Tin

Mounting Type :

Surface Mount

Accuracy :

1 %

ECCN Code :

EAR99

Factory Lead Time :

12 Weeks

Dropout Voltage1-Nom :

0.1V

Time@Peak Reflow Temperature-Max (s) :

10

Input Voltage Absolute-Max :

6.5V

Pin Count :

4

Max Output Current :

150mA

Number of Outputs :

1

Output Voltage 1 :

2.5V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

4

Packing Method :

Tape and Reel

Peak Reflow Temperature (Cel) :

260

RoHS Status :

ROHS3 Compliant

Packaging :

Tape and Reel (TR)

Output Voltage :

2.5V

Voltage Dropout (Max) :

0.15V @ 100mA

Voltage Tolerance-Max :

3%

Base Part Number :

BH25

Min Input Voltage :

2.5V

Terminal Form :

Ball

Number of Functions :

1

Voltage - Input (Max) :

5.5V

Operating Temperature :

-40°C~85°C

Pbfree Code :

yes

Control Features :

Enable

Height Seated (Max) :

0.675mm

Output Configuration :

Positive

PSRR :

63dB (1kHz)
