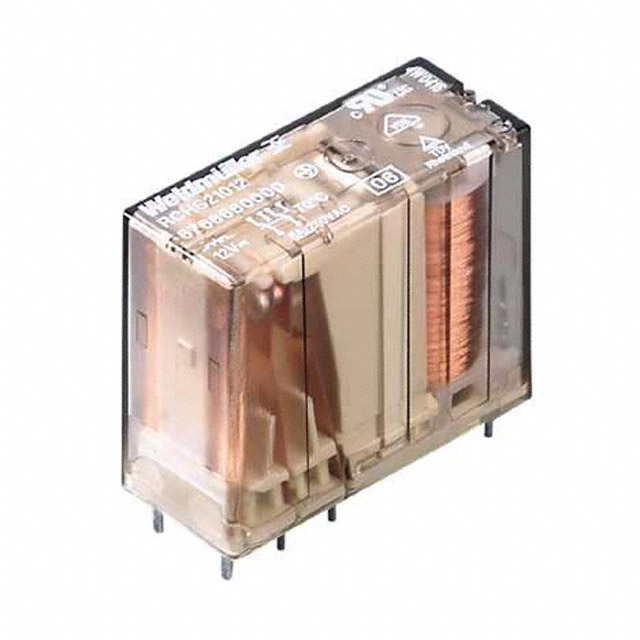

8768670000
Or copy the link below:
- Mfr.Part #
- 8768670000
- Manufacturer
- Weidmuller
- Package / Case
- Datasheet
- Download
- Description
- RELAY GEN PURPOSE DPST 6A 12V
- Stock
- 11,295
- In Stock ：
- 11,295
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Weidmuller
- Product Category :
- Power Relays, Over 2 Amps
- Power Rating :
- 700mW
- Operating Temperature :
- -25°C~70°C
- Series :
- RCH
- Must Release Voltage :
- 1.2VDC
- Release Time :
- 4ms
- Voltage - Rated :
- 12V
- Must Operate Voltage :
- 9VDC
- RoHS Status :
- RoHS Compliant
- Length :
- 29mm
- Width :
- 12.6mm
- Weight :
- 20g
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Reference Standard :
- TUV; UL; VDE
- Relay Type :
- GENERAL PURPOSE
- Contact Voltage(AC)-Max :
- 250V
- Height :
- 25.5mm
- Coil Type :
- Non Latching
- Termination Style :
- PC Pin
- Coil/Input Supply Type :
- DC
- Termination :
- PC Pin
- Switching Voltage :
- 250VAC -Max
- Relay Action :
- Momentary
- Operate Time :
- 10ms
- Coil Power :
- 700mW
- Coil Voltage (DC) :
- 12V
- Number of Contacts :
- 1
- Approval Agency :
- VDE, cURus
- Published :
- 2013
- Contact Material :
- Silver Nickel (AgNi)
- ECCN Code :
- EAR99
- Current Rating :
- 58.3mA
- Packaging :
- Bulk
- Coil Current(DC)-Max :
- 0.058A
- Contact Form :
- DPST-NO/NC (1 Form A, 1 Form B)
- Contact Rating (Current) :
- 6A
- Throw Configuration :
- DPST, SPST
- Coil Resistance :
- 205.8Ohm
- Contact/Output Supply Type :
- AC
- Coil Voltage :
- 12VDC
- Mounting Type :
- Through Hole
- Datasheets
- 8768670000
