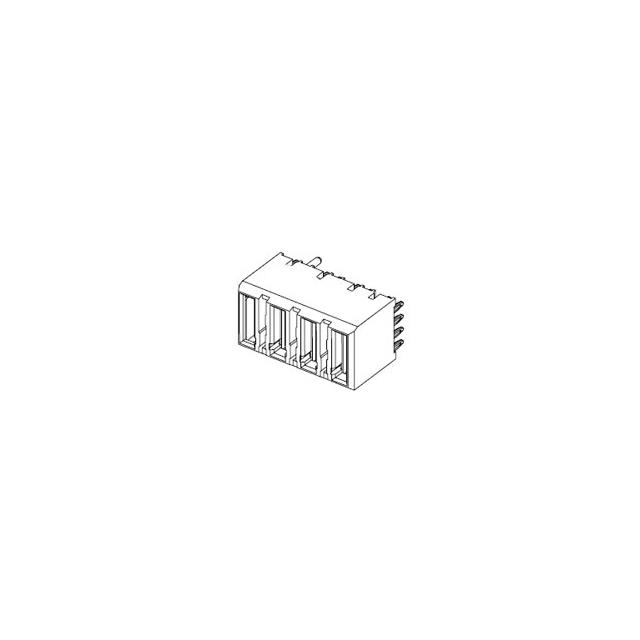

87680-2002

Share

Or copy the link below:

Mfr.Part #
87680-2002
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
6.35MM PITCH, POWER, EXTREME POW
Stock
3,974
In Stock :
3,974

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Specialized
Contact Finish Termination :
Tin (Sn)
Body Orientation :
Straight
Orientation :
Vertical
Gender :
RCP
Plating :
Tin
Number of Circuits :
4
Number of Positions Loaded :
All
Current Rating :
30 A
Glow Wire Compliant :
Non-Compliant
Number of Terminals :
24
Contact Layout, Typical :
4 Power
Housing Material :
Thermoplastic
UL Flammability Code :
94V-0
Manufacturer Lifecycle Status :
Obsolete (Last Updated: 2 years ago)
Termination Method :
Press Fit
Current Rating (Max) :
30/Contact(A)
Product Height (mm) :
12.7(mm)
Packaging :
Tray
RoHS :
Compliant
Color :
Black
Connector Style :
Power
Filter Feature :
No
Type :
Power
Termination :
Through Hole
Series :
EXTreme PowerPlus 87680
Number of Columns :
-
Operating Temperature Max Deg. C :
105C
Contact Gender :
FEMALE
Pbfree Code :
yes
Product Depth (mm) :
12.09(mm)
Mounting Style :
Through Hole
Total Number of Contacts :
4
DIN Conformance :
No
Manufacturer :
Molex
Mounting Type :
Through Hole
Product Diameter (mm) :
Not Required(mm)
Pitch :
6.35 mm
Voltage Rating Max :
48V
Product Length (mm) :
23.75(mm)
Termination Type :
Press Fit
Contact Finish :
Gold
Package :
Box
MIL Conformance :
No
Product Status :
Active
JESD-609 Code :
e3
Halogen Free :
Low Halogen
Body/Shell Style :
Receptacle
Material Flammability Rating :
UL94 V-0
Operating Temperature Min Deg. C :
-20C
Operating Temp Range :
-20C to 105C
Features :
Board Guide
Contact Material :
COPPER ALLOY
Number of Positions :
4
Contact Finish Thickness :
30.0µin (0.76µm)
Connector Usage :
-
Option :
GENERAL PURPOSE
Country of Origin :
SG
Number of Rows :
1
Shell Material :
GLASS FILLED POLYETHYLENE
Reach Compliance Code :
Unknown
Number of Ports :
1(Port)
Voltage Rating :
48 V
IEC Conformance :
No
Operating Temperature :
-20°C ~ 105°C
Lifecycle Status :
Obsolete (Last Updated: 2 years ago)
Number of Contacts :
4(POS)
Contact Plating :
Gold
Mixed Contacts :
No
Empty Shell :
No
Connector Type :
Receptacle, Female Blade Sockets
Current Rating (Amps) :
-
Introducing Specialized Molex 87680-2002 from Chip IC,where excellence meets affordability. This product stands out with its Type:Power, Mounting Type:Through Hole, Operating Temperature:-20°C ~ 105°C, 87680-2002 pinout, 87680-2002 datasheet PDF, 87680-2002 amp .Beyond Specialized Molex 87680-2002 ,we also offer 6469025-1, 1892787-6, 0761703038, Our vast inventory has you covered. Contact us now for immediate solutions.

Molex 87680-2002
