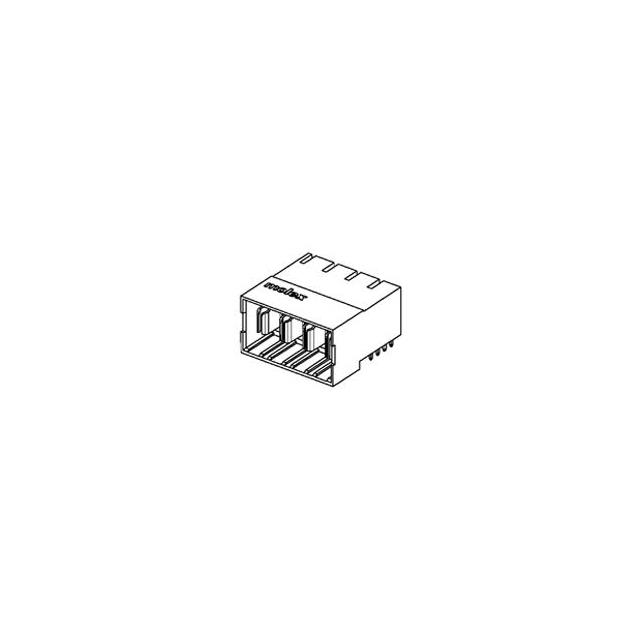

87684-2001

Manufacturer :

Molex

Product Category :

Specialized

Material Flammability Rating :

UL94 V-0

Connector Usage :

-

Reliability :

COMMERCIAL

Subcategory :

Headers and Edge Type Connectors

Number of Terminals :

16

Insulator Color :

Black

Number of Columns :

-

Contact Gender :

Male

Body/Shell Style :

Receptacle

Filter Feature :

No

Operating Temperature :

-20°C ~ 70°C

Operating Temperature Min Deg. C :

-20C

Gender :

HDR

Series :

EXTreme PowerPlus 87684

Contact Layout, Typical :

2 Power

Number of Rows :

1

Type :

Power

Max Voltage Rating (DC) :

50 V

Reference Standard :

CSA,TUV,UL

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

IEC Conformance :

No

Max Operating Temperature :

70 °C

Voltage Rating (DC) :

50 V

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Pitch :

6.35 mm

Features :

-

Housing Material :

Thermoplastic

Termination Method :

Solder

Body Breadth :

0.574 inch

Package :

Box

Mixed Contacts :

No

Withdrawl Force-Min :

2.224 N

Contact Arrangement :

S0P2

Packaging :

Tray

Number of Positions :

2

Contact Finish :

Gold

Mount :

Through Hole

Connector Style :

Power

Orientation :

RIGHT ANGLE

MIL Conformance :

No

Contact Style :

BLADE PIN-SKT

Country of Origin :

SG

Contact Finish Thickness :

30.0µin (0.76µm)

Product Depth (mm) :

25.25(mm)

Contact Finish Termination :

Tin (Sn)

Body Orientation :

RIGHT ANGLE

Product Height (mm) :

14.58(mm)

Min Operating Temperature :

-20 °C

RoHS :

Compliant

Shell Material :

GLASS FILLED POLYETHYLENE

Voltage Rating Max :

50VDC

Pitch (mm) :

6.35(mm)

Manufacturer :

Molex

Number of Contacts :

2(POS)

Dielectric Withstanding Voltage :

2500VAC V

DIN Conformance :

No

Current Rating :

30 A

Glow Wire Compliant :

Non-Compliant

Voltage Rating :

250V

Contact Resistance :

20 mΩ

Halogen Free :

Low Halogen

Pbfree Code :

yes

Body Depth :

0.994 inch

Option :

GENERAL PURPOSE

JESD-609 Code :

e3

Insertion Force-Max :

6.672 N

Product Length (mm) :

13.2(mm)

Terminal Length :

0.136 inch

Termination :

Solder

Insulation Resistance :

20000000000 Ω

Plating :

Tin

Connector Type :

Header, Male Blades

Contact Material :

COPPER ALLOY

Contact Plating :

Gold Over Nickel

Product Diameter (mm) :

Not Required(mm)

UL Flammability Code :

94V-0

Mounting Type :

Board Edge, Through Hole, Right Angle

Plating Thickness :

30u inch

Total Number of Contacts :

2

Operating Temp Range :

-20C to 70C

Number of Positions Loaded :

All

Reach Compliance Code :

Compliant

Current Rating (Amps) :

-

Durability :

100 Cycles

Number of Ports :

1(Port)

Product Status :

Active

Number of Circuits :

2

Color :

Black

Additional Feature :

RoHS Compliant

Termination Type :

Solder

Current Rating (Max) :

30/Contact(A)

Mounting Style :

Through Hole

Empty Shell :

No

Mounting Option 1 :

LOCKING

Operating Temperature Max Deg. C :

70C
