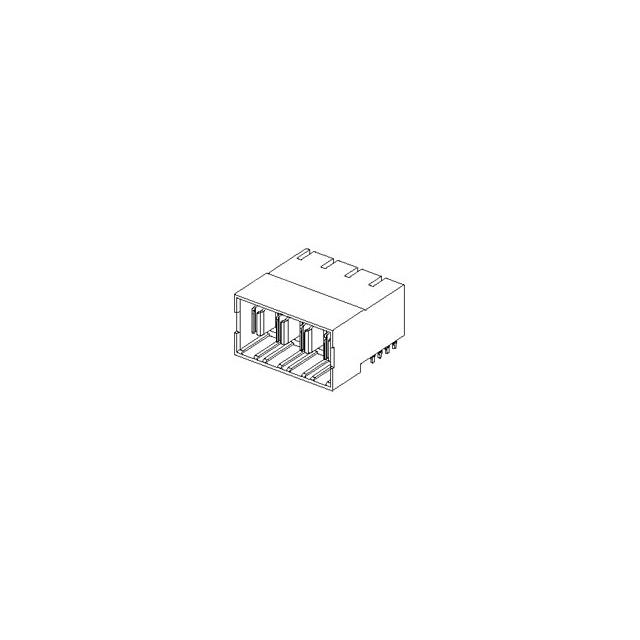

87682-2003

Manufacturer :

Molex

Product Category :

Specialized

Plating :

Tin

Termination Type :

Press Fit

Body Orientation :

RIGHT ANGLE

Features :

-

Manufacturer :

Molex

Series :

EXTreme PowerPlus 87682

Operating Temperature :

-20°C ~ 70°C

Shell Material :

GLASS FILLED POLYETHYLENE

Reach Compliance Code :

Unknown

Type :

Power

DIN Conformance :

No

Depth :

25.25 mm

Product Height (mm) :

14.58(mm)

Filter Feature :

No

Current Rating :

30 A

Product Length (mm) :

25.9(mm)

Number of Positions :

4

Operating Temperature Max Deg. C :

70C

Mount :

Edge, Through Hole

HTS Code :

8536.69.40.30

Number of Positions Loaded :

All

UL Flammability Code :

94V-0

Length :

25.9 mm

Number of Circuits :

2

MIL Conformance :

No

Product Depth (mm) :

25.25(mm)

Pbfree Code :

yes

Number of Ports :

1

Min Operating Temperature :

-20 °C

Current Rating (Max) :

30/Contact(A)

Contact Gender :

Male

Empty Shell :

No

Connector Style :

Power

Total Number of Contacts :

4

Product Status :

Active

Packaging :

Tray

Voltage Rating :

50 V

Radiation Hardening :

No

Number of Terminals :

24

Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Mixed Contacts :

No

Connector Type :

Power

Contact Finish :

Gold

Material Flammability Rating :

UL94 V-0

Option :

GENERAL PURPOSE

Number of Rows :

1

Package :

Box

Mounting Style :

Through Hole

Flammability Rating :

UL94 V-0

Termination :

Press-Fit

Operating Temp Range :

-20C to 70C

Contact Layout, Typical :

4 Power

Termination Method :

Press Fit

Product Diameter (mm) :

Not Required(mm)

Max Voltage Rating (DC) :

50 V

ECCN Code :

EAR99

Connector Usage :

-

Contact Material :

COPPER ALLOY

Pitch :

6.35 mm

Voltage Rating Max :

50VDC

Housing Material :

Thermoplastic

Orientation :

RIGHT ANGLE

Number of Columns :

-

Country of Origin :

SG

Gender :

HDR

Number of Contacts :

4

Contact Finish Thickness :

30.0µin (0.76µm)

IEC Conformance :

No

Manufacturer Lifecycle Status :

Obsolete (Last Updated: 2 years ago)

Operating Temperature Min Deg. C :

-20C

Mounting Type :

Board Edge, Through Hole, Right Angle

Current Rating (Amps) :

-

RoHS :

Compliant

Contact Plating :

Gold

Color :

Black

Max Operating Temperature :

70 °C
