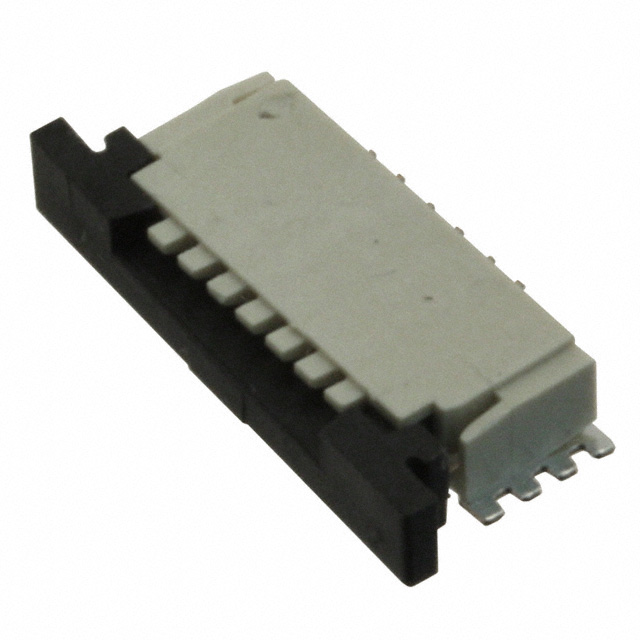

84953-6

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Number of Positions :

6

UL Flammability Code :

94V-0

Cable End Type :

Straight

Plating Thickness :

2μm

Mixed Contacts :

No

Sealable :

No

PCB Mount Retention :

With

Contact Finish :

Tin

Lead Free :

Lead Free

PCB Mounting Orientation :

RIGHT ANGLE

Published :

2006

Packaging :

Tape and Reel (TR)

Width :

6.54mm

Locking Feature :

Slide Lock

ELV :

Compliant

Mounting Type :

Surface Mount, Right Angle

MIL Conformance :

No

Actuator Material :

Polyamide (PA), Nylon, Glass Filled

Orientation :

RIGHT ANGLE

Pitch :

0.039 1.00mm

Rated Current (Signal) :

1A

Flammability Rating :

UL94 V-0

Circuit Application :

Signal

Contact Location :

Top

Contact Style :

BELLOWED TYPE

IEC Conformance :

No

Height Above Board :

0.101 2.56mm

Contact Finish Thickness :

78.7μin 2.00μm

Depth :

2.56mm

Connector/Contact Type :

Contacts, Top

DIN Conformance :

No

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Current Rating :

1A

Withdrawl Force-Min :

ZIF N

Insertion Force-Max :

ZIF N

Shielding :

Unshielded

Contact Current Rating :

1A

Reliability :

COMMERCIAL

Lead Pitch :

1mm

Factory Lead Time :

13 Weeks

Termination :

Solder

Housing Material :

Liquid Crystal Polymer (LCP), Glass Filled

Height :

2.56mm

FFC, FCB Thickness :

0.30mm

Gender :

Receptacle

Actuator Color :

Black

Flat Flex Type :

FPC

Connector Type :

Connector, Receptacle, Socket

Material :

Thermoplastic

PCB Contact Pattern :

RECTANGULAR

Housing Color :

Natural

Option :

GENERAL PURPOSE

Lifecycle Status :

ACTIVE (Last Updated: 5 months ago)

Pbfree Code :

yes

Filter Feature :

No

Contact Pattern :

RECTANGULAR

Mount :

Surface Mount

REACH SVHC :

No SVHC

Number of Rows :

1

Wire/Cable Type :

Flat Flex

Total Number of Contacts :

6

PCB Mount Alignment :

Without

Operating Supply Voltage :

200V

Reference Standard :

UL, CSA

Length :

13.92mm

Dielectric Withstanding Voltage :

500VAC V

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Operating Temperature :

-40°C~85°C

Number Of PCB Rows :

1

Contact Material :

Phosphor Bronze

RoHS Status :

RoHS Compliant

Material Flammability Rating :

UL94 V-0
