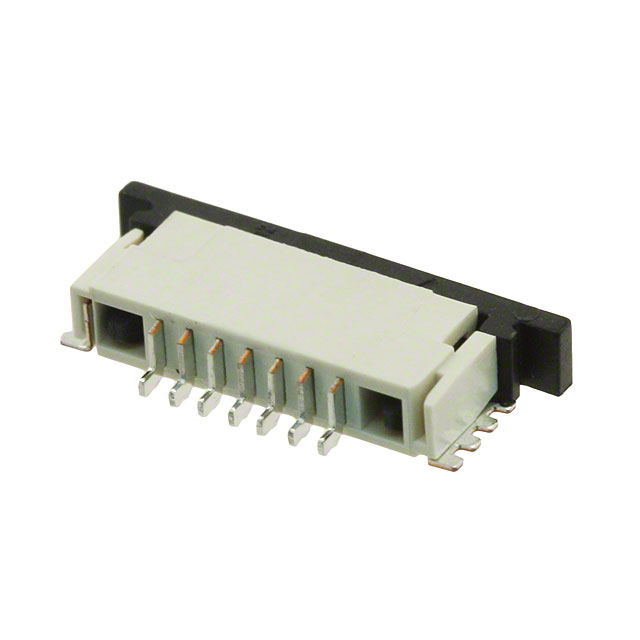

84952-7

Share

Or copy the link below:

Mfr.Part #
84952-7
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FPC BOTTOM 7POS 1.00MM R/A
Stock
9,374
In Stock :
9,374

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Assemblies
JESD-609 Code :
e3
Max Voltage Rating (AC) :
200V
IEC Conformance :
No
Operating Supply Voltage :
200V
Withdrawl Force-Min :
ZIF N
Insertion Force-Max :
ZIF N
Contact Material :
Phosphor Bronze
Plating Thickness :
2μm
ELV :
Compliant
DIN Conformance :
No
Length :
14.89964mm
FFC, FCB Thickness :
0.30mm
Current Rating :
1A
Flat Flex Type :
FPC
Height :
2.56mm
Total Number of Contacts :
7
Contact Current Rating :
1A
Factory Lead Time :
13 Weeks
Reliability :
COMMERCIAL
Connector Type :
Connector, Receptacle, Socket
REACH SVHC :
Unknown
Wire/Cable Type :
Flat Flex
RoHS Status :
RoHS Compliant
Contact Finish Thickness :
78.7μin 2.00μm
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Tape and Reel (TR)
Actuator Material :
Polyamide (PA), Nylon, Glass Filled
Operating Temperature :
-40°C~85°C
Published :
2006
Dielectric Withstanding Voltage :
500VAC V
Pitch :
0.039 1.00mm
Shielding :
Unshielded
Gender :
Receptacle
Housing Color :
Natural
Reference Standard :
UL
Sealable :
No
PCB Mount Retention :
With
Mixed Contacts :
No
Filter Feature :
No
Mounting Type :
Surface Mount, Right Angle
MIL Conformance :
No
Actuator Color :
Black
Material Flammability Rating :
UL94 V-0
Contact Style :
BELLOWED TYPE
Number Of PCB Rows :
1
Rated Current (Signal) :
1A
PCB Mount Alignment :
Without
Connector/Contact Type :
Contacts, Bottom
Termination :
Solder
Width :
6.54mm
UL Flammability Code :
94V-0
Circuit Application :
Signal
Mount :
Surface Mount
Height Above Board :
0.101 2.56mm
Durability :
30 Cycles
PCB Contact Pattern :
RECTANGULAR
Housing Material :
Liquid Crystal Polymer (LCP), Glass Filled
Lifecycle Status :
ACTIVE (Last Updated: 3 days ago)
Contact Pattern :
RECTANGULAR
Orientation :
RIGHT ANGLE
Option :
GENERAL PURPOSE
Cable End Type :
Straight
PCB Mounting Orientation :
RIGHT ANGLE
Number of Positions :
7
Number of Rows :
1
Feature :
Solder Retention, Zero Insertion Force (ZIF)
Locking Feature :
Slide Lock
Depth :
6.54mm
Contact Finish :
Tin
Datasheets
84952-7
Introducing FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 84952-7 from Chip IC,where excellence meets affordability. This product stands out with its Operating Temperature:-40°C~85°C, Mounting Type:Surface Mount, Right Angle, 84952-7 pinout, 84952-7 datasheet PDF, 84952-7 amp .Beyond FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 84952-7 ,we also offer 0527450497, 1-1734592-0, 62674-161121ALF, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 84952-7


FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 7 Positions Surface Mount, Right Angle Tin -40°C~85°C

84952-7 Overview


The connector type Connector, Receptacle, Socket refers to the connector type.The device's mounting type is Surface Mount, Right Angle.In order to package the product, a Tape & Reel (TR) case is used.Its Solder Retention, Zero Insertion Force (ZIF) feature renders it more powerful in many ways.The part is mounted by Surface Mount.This memory's operating supply voltage is 200V.The device runs in -40°C~85°C Operating Temperature.
