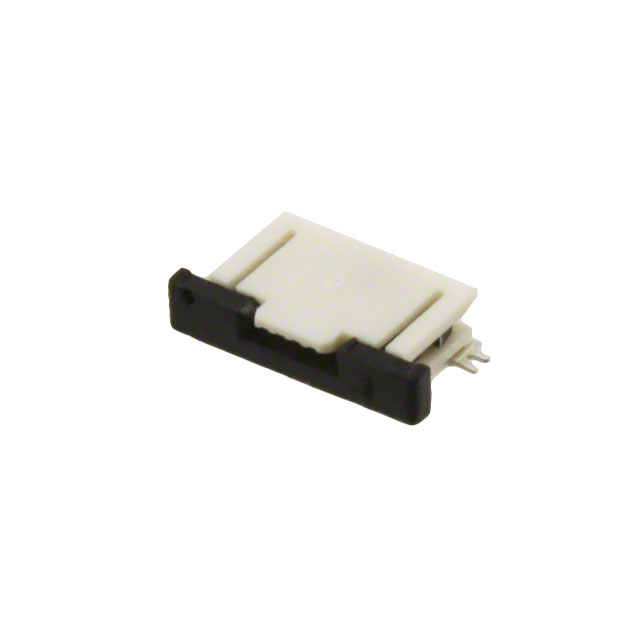

0527450497

Manufacturer :

Molex

Product Category :

FFC, FPC (Flat Flexible) Connector Assemblies

Contact Gender :

FEMALE

Reference Standard :

UL

Height Above Board :

0.079 2.00mm

Operating Temperature :

-20°C~85°C

Connector/Contact Type :

Contacts, Top

Insertion Force-Max :

ZIF N

Reliability :

COMMERCIAL

ECCN Code :

EAR99

Termination :

Solder

Connector Type :

FFC/FPC CONNECTOR

Option :

GENERAL PURPOSE

FFC, FCB Thickness :

0.30mm

PCB Contact Pattern :

RECTANGULAR

Total Number of Contacts :

4

Mating Cycles :

20

Filter Feature :

No

DIN Conformance :

No

Body Depth :

0.197 inch

Pbfree Code :

yes

Factory Lead Time :

13 Weeks

Contact Pattern :

RECTANGULAR

Mounting Option 1 :

LOCKING

MIL Conformance :

No

Packaging :

Tape and Reel (TR)

Insulator Color :

White

Contact Material :

Phosphor Bronze

Additional Feature :

EASY-ON, POLARIZED

Pitch :

0.020 0.50mm

Series :

52745

Mixed Contacts :

No

Feature :

Solder Retention, Zero Insertion Force (ZIF)

Mounting Type :

Surface Mount, Right Angle

Contact Finish :

Gold

Number of Rows :

1

Contact Style :

SINGLE PRONG

Body Length or Diameter :

0.319 inch

Housing Material :

Polyamide (PA46), Nylon 4/6, Glass Filled

Current Rating (Amps) :

0.5A

Withdrawl Force-Min :

ZIF N

Number of Positions :

4

Locking Feature :

Slide Lock

Voltage - Rated :

50V

IEC Conformance :

No

Cable End Type :

Straight

Number Of PCB Rows :

1

Insulation Resistance :

50000000Ohm

RoHS Status :

ROHS3 Compliant

Board Mounting Option :

FITTING NAIL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

JESD-609 Code :

e4

Body Breadth :

0.079 inch
