84952-5

Share

Or copy the link below:

Mfr.Part #
84952-5
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN FPC BOTTOM 5POS 1.00MM R/A
Stock
2,043
In Stock :
2,043

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
FFC, FPC (Flat Flexible) Connector Assemblies
Contact Location :
BOTTOM
Housing Material :
Liquid Crystal Polymer (LCP), Glass Filled
FFC, FCB Thickness :
0.30mm
Durability :
30 Cycles
PCB Contact Pattern :
RECTANGULAR
Connector/Contact Type :
Contacts, Bottom
Pitch :
0.039 1.00mm
PCB Mount Alignment :
Without
Shielding :
Unshielded
Number Of PCB Rows :
1
RoHS Status :
RoHS Compliant
Option :
GENERAL PURPOSE
Length :
12.92mm
Locking Feature :
Slide Lock
Insertion Force-Max :
ZIF N
Contact Style :
BELLOWED TYPE
Contact Finish :
Tin
Filter Feature :
No
Height Above Board :
0.101 2.56mm
Current Rating :
1A
Mixed Contacts :
No
Packaging :
Tape and Reel (TR)
DIN Conformance :
No
Orientation :
RIGHT ANGLE
Cable End Type :
Straight
ELV :
Compliant
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Mounting Type :
Surface Mount, Right Angle
Number of Rows :
1
Contact Pattern :
RECTANGULAR
Total Number of Contacts :
15
Withdrawl Force-Min :
ZIF N
Operating Supply Voltage :
200V
UL Flammability Code :
94V-0
Published :
2006
Flat Flex Type :
FPC
Actuator Material :
Polyamide (PA), Nylon, Glass Filled
Plating Thickness :
2μm
Reference Standard :
UL
PCB Mounting Orientation :
RIGHT ANGLE
IEC Conformance :
No
Operating Temperature :
-40°C~85°C
Contact Finish Thickness :
78.7μin 2.00μm
Lifecycle Status :
ACTIVE (Last Updated: 5 days ago)
Reliability :
COMMERCIAL
Depth :
6.54mm
Connector Type :
Connector, Receptacle, Socket
Material Flammability Rating :
UL94 V-0
Housing Color :
Natural
Termination :
Solder
Actuator Color :
Black
Width :
6.54mm
Feature :
Solder Retention, Zero Insertion Force (ZIF)
PCB Mount Retention :
With
Contact Current Rating :
1A
Rated Current (Signal) :
1A
Mount :
Surface Mount
Sealable :
No
MIL Conformance :
No
ECCN Code :
EAR99
Factory Lead Time :
13 Weeks
Number of Positions :
5
Wire/Cable Type :
Flat Flex
Gender :
Receptacle
Circuit Application :
Signal
Height :
2.56mm
Contact Material :
Phosphor Bronze
Max Voltage Rating (AC) :
200V
Datasheets
84952-5
Introducing FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 84952-5 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, Right Angle, Operating Temperature:-40°C~85°C, 84952-5 pinout, 84952-5 datasheet PDF, 84952-5 amp .Beyond FFC, FPC (Flat Flexible) Connector Assemblies TE Connectivity AMP Connectors 84952-5 ,we also offer 0527450497, 1-1734592-0, 62674-161121ALF, Our vast inventory has you covered. Contact us now for immediate solutions.

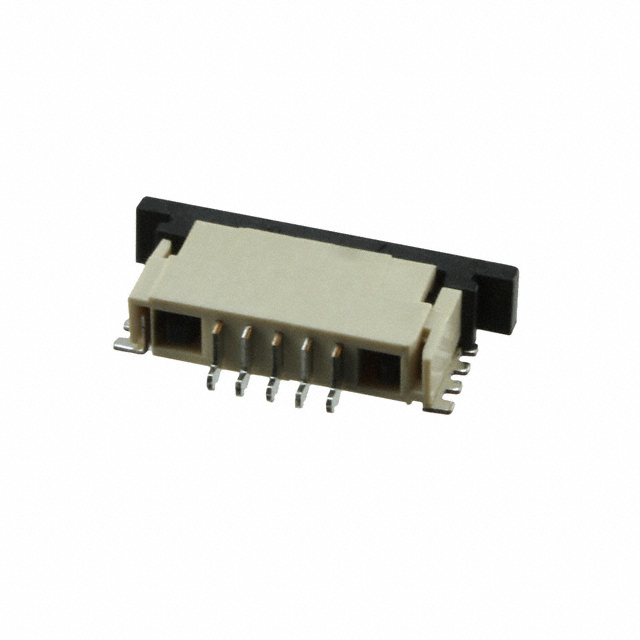

TE Connectivity AMP Connectors 84952-5


FPC Contacts, Bottom Tape & Reel (TR) 0.039 1.00mm Solder 5 Positions Surface Mount, Right Angle Tin -40°C~85°C

84952-5 Overview


You'll get Connector, Receptacle, Socket packages.Mounting type Surface Mount, Right Angle is assigned to the device.Packaging the product involves using a Tape & Reel (TR) case.A number of benefits can be derived from the Solder Retention, Zero Insertion Force (ZIF) feature of this application.Surface Mount is the mounting point for the part.There is a note indicating that this memory operates at an 200V volt supply voltage.-40°C~85°C Operating Temperature is used by the device.
