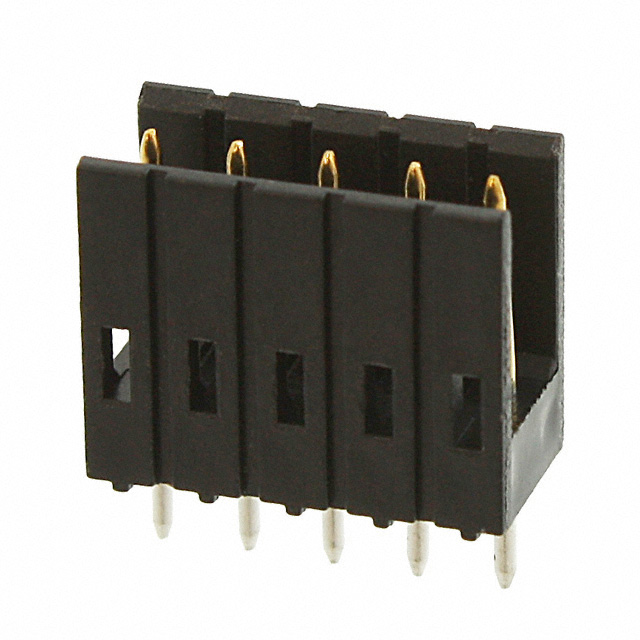

826467-5

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Headers, Male Pins

UL Flammability Code :

94V-0

Polarization Key :

POLARIZED HOUSING

High Temperature Housing :

yes

Lifecycle Status :

ACTIVE (Last Updated: 2 days ago)

PCB Mounting Orientation :

Vertical

IEC Conformance :

No

Number of Rows :

1

Material Flammability Rating :

UL94 V-0

Insulation Material :

Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled

Shrouding :

Shrouded - 2 Wall

Contact Finish Thickness - Mating :

3.90μin 0.099μm

Packaging :

Bulk

Reliability :

COMMERCIAL

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Plating Thickness :

3µm

Voltage - Rated AC :

250V

ELV :

Compliant

Contact Gender :

Male

Series :

AMPMODU Mod II

Number of Conductors :

ONE

Number of Poles :

5

Factory Lead Time :

20 Weeks

Connector Type :

Header

Contact Finish - Post :

Tin

DIN Conformance :

No

ECCN Code :

EAR99

Mount :

Through Hole

Length :

12.7mm

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Body Breadth :

0.236 inch

PCB Contact Pattern :

RECTANGULAR

Depth :

6mm

High Speed Serial Data Connector :

No

Mounting Type :

Through Hole

Contact Length - Post :

0.126 3.20mm

Contact Finish - Mating :

Gold

Number Of PCB Rows :

1

MIL Conformance :

No

Working Voltage :

250V

Termination :

Solder

Number of Positions Loaded :

All

Contact Shape :

Square

Pbfree Code :

yes

Current Rating :

3A

Contact Finish Thickness - Post :

118.1μin 3.00μm

Row Spacing :

2.54 mm

Filter Feature :

No

Operating Temperature :

-55°C~105°C

Mating Post Length :

6.7mm

Housing Color :

Black

Fastening Type :

Latch Holder

Contact Material :

Phosphor Bronze

Lead Length :

3.19786mm

Style :

Board to Board or Cable

Lead Pitch :

2.54mm

Flammability Rating :

UL94 V-0

RoHS Status :

RoHS Compliant

Approval Agency :

CSA

Pitch - Mating :

0.100 2.54mm

Published :

2008

Insulation Height :

0.394 10.00mm

Housing Material :

Polyester

Contact Type :

Male Pin
