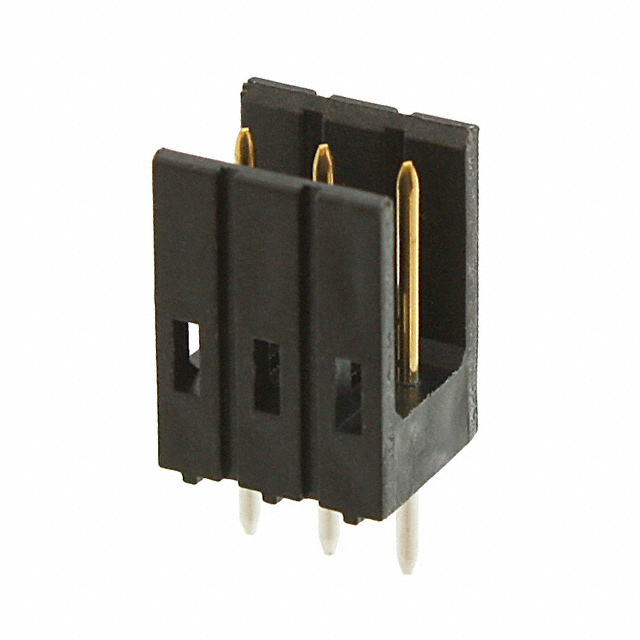

826467-3
Or copy the link below:
- Mfr.Part #
- 826467-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 3POS 2.54MM
- Stock
- 45
- In Stock ：
- 45
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Voltage - Rated AC :
- 250V
- Published :
- 2008
- UL Flammability Code :
- 94V-0
- Mating Post Length :
- 6.7mm
- Row Spacing :
- 2.54 mm
- Mixed Contacts :
- No
- Contact Shape :
- Square
- Style :
- Board to Board or Cable
- Length :
- 7.62mm
- Connector Type :
- Header
- Contact Type :
- Male Pin
- Lead Length :
- 3.19786mm
- Pbfree Code :
- yes
- Factory Lead Time :
- 20 Weeks
- IEC Conformance :
- No
- Dielectric Withstanding Voltage :
- 750VAC V
- ELV :
- Compliant
- Depth :
- 6mm
- Contact Gender :
- Male
- Insulation Height :
- 0.394 10.00mm
- Lead Pitch :
- 2.54mm
- Termination :
- Solder
- Filter Feature :
- No
- Packaging :
- Bulk
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Insulation Resistance :
- 5000000000Ohm
- Material Flammability Rating :
- UL94 V-0
- Pitch - Mating :
- 0.100 2.54mm
- Current Rating :
- 3A
- Flammability Rating :
- UL94 V-0
- High Temperature Housing :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- High Speed Serial Data Connector :
- No
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- JESD-609 Code :
- e3
- Shrouding :
- Shrouded - 2 Wall
- Contact Length - Post :
- 0.126 3.20mm
- PCB Contact Pattern :
- RECTANGULAR
- ECCN Code :
- EAR99
- Number of Positions :
- 3
- Fastening Type :
- Latch Holder
- Series :
- AMPMODU Mod II
- Number of Positions Loaded :
- All
- MIL Conformance :
- No
- Number Of PCB Rows :
- 1
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Plating Thickness :
- 5µm
- Contact Material :
- Phosphor Bronze
- Operating Temperature :
- -55°C~105°C
- Housing Material :
- Polyester
- RoHS Status :
- RoHS Compliant
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- DIN Conformance :
- No
- Housing Color :
- Black
- Orientation :
- Vertical
- Reliability :
- COMMERCIAL
- Approval Agency :
- CSA
- Contact Finish - Post :
- Tin
- Option :
- GENERAL PURPOSE
- Polarization Key :
- POLARIZED HOUSING
- Contact Finish - Mating :
- Gold
- REACH SVHC :
- Unknown
- Voltage - Rated DC :
- 250V
- Mounting Type :
- Through Hole
- Mount :
- Through Hole
- Number of Rows :
- 1
- Number of Conductors :
- ONE
- Datasheets
- 826467-3
AMPMODU Mod II Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled 3-Position Board to Board or Cable 0.394 10.00mm Height
826467-3 Overview
The product is packaged in Header.This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the AMPMODU Mod II Series.Part Through Hole is mounted to the part.As a result, the device runs at -55°C~105°C Operating Temperature.
826467-3 Features
AMPMODU Mod II series
826467-3 Applications
There are a lot of TE Connectivity AMP Connectors
826467-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
