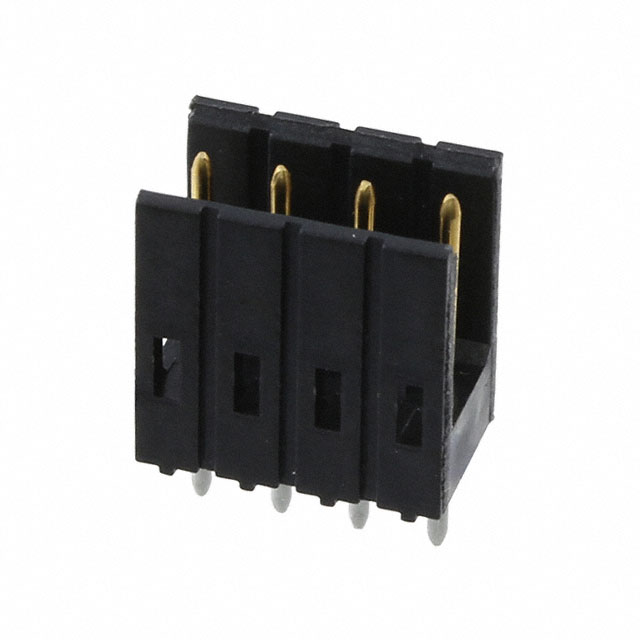

826467-4
Or copy the link below:
- Mfr.Part #
- 826467-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER VERT 4POS 2.54MM
- Stock
- 4,966
- In Stock ：
- 4,966
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Headers, Male Pins
- Pbfree Code :
- yes
- Contact Material :
- Phosphor Bronze
- Contact Length - Post :
- 0.126 3.20mm
- Filter Feature :
- No
- Body Breadth :
- 0.236 inch
- Dielectric Withstanding Voltage :
- 750VAC V
- Number of Positions Loaded :
- All
- Lead Pitch :
- 2.54mm
- Rated Current (Signal) :
- 3A
- Voltage - Rated AC :
- 250V
- Reliability :
- COMMERCIAL
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Current Rating :
- 3A
- REACH SVHC :
- No SVHC
- Polarization Key :
- POLARIZED HOUSING
- PCB Contact Pattern :
- RECTANGULAR
- High Temperature Housing :
- yes
- Pitch - Mating :
- 0.100 2.54mm
- Contact Shape :
- Square
- Housing Color :
- Black
- Working Voltage :
- 250V
- Number of Conductors :
- ONE
- Contact Finish Thickness - Mating :
- 3.90μin 0.099μm
- Length :
- 10.16mm
- Published :
- 2008
- Number Of PCB Rows :
- 1
- Factory Lead Time :
- 20 Weeks
- Row Spacing :
- 2.54 mm
- Number of Rows :
- 1
- Lifecycle Status :
- ACTIVE (Last Updated: 3 days ago)
- Mixed Contacts :
- No
- Insulation Height :
- 0.394 10.00mm
- ECCN Code :
- EAR99
- Mating Post Length :
- 6.7mm
- Packaging :
- Bulk
- Lead Length :
- 3.19786mm
- Voltage - Rated DC :
- 250V
- IEC Conformance :
- No
- Mount :
- Through Hole
- Number of Poles :
- 4
- Contact Type :
- Male Pin
- Connector Type :
- Header
- RoHS Status :
- RoHS Compliant
- Material Flammability Rating :
- UL94 V-0
- Operating Temperature :
- -55°C~105°C
- Series :
- AMPMODU Mod II
- Insulation Material :
- Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
- PCB Mounting Orientation :
- Vertical
- ELV :
- Compliant
- Orientation :
- Straight, Vertical
- Shrouding :
- Shrouded - 2 Wall
- Mounting Type :
- Through Hole
- Flammability Rating :
- UL94 V-0
- Lead Free :
- Lead Free
- Contact Finish Thickness - Post :
- 118.1μin 3.00μm
- JESD-609 Code :
- e3
- Termination :
- Solder
- Contact Gender :
- Male
- DIN Conformance :
- No
- High Speed Serial Data Connector :
- No
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Fastening Type :
- Latch Holder
- MIL Conformance :
- No
- Option :
- GENERAL PURPOSE
- Style :
- Board to Board or Cable
- Plating Thickness :
- 5µm
- Housing Material :
- Polyester
- Insulation Resistance :
- 5000000000Ohm
- Approval Agency :
- CSA
- Depth :
- 6mm
- Datasheets
- 826467-4
AMPMODU Mod II Series 1-Row Header Solder Phosphor Bronze Bulk Through Hole Gold Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled Board to Board or Cable 0.394 10.00mm Height
826467-4 Overview
It comes in a Header package.Through Hole is the mounting type of the device.We pack the product in a Bulk case.This is from the AMPMODU Mod II Series.This part is mounted by Through Hole. -55°C~105°C Operating Temperature is the default.
826467-4 Features
AMPMODU Mod II series
826467-4 Applications
There are a lot of TE Connectivity AMP Connectors
826467-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
