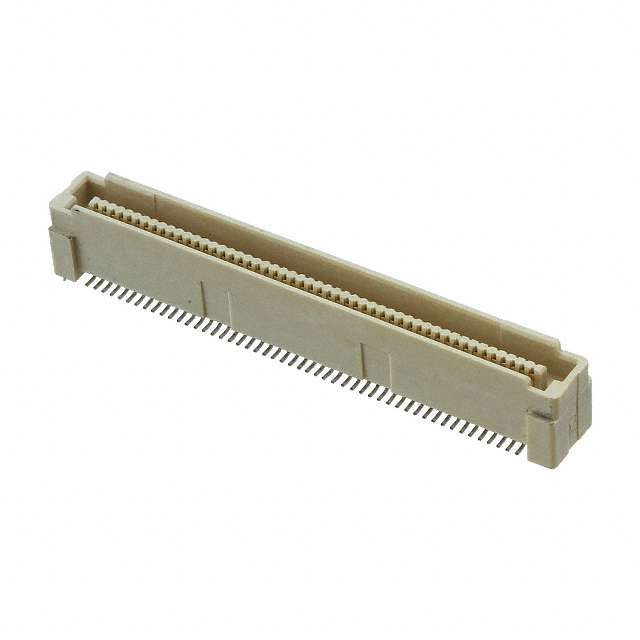

6123002-4
Or copy the link below:
- Mfr.Part #
- 6123002-4
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 100POS SMD GOLD
- Stock
- 100
- In Stock ：
- 100
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- Orientation :
- Vertical
- Contact Material :
- Brass
- Housing Material :
- Polymer
- Total Number of Contacts :
- 100
- Contact Current Rating :
- 500mA
- Packaging :
- Tube
- Circuit Application :
- Signal
- Max Operating Temperature :
- 125°C
- Feature :
- Board Guide
- Mount :
- Surface Mount
- DIN Conformance :
- No
- Insulation Resistance :
- 2MOhm
- RoHS Status :
- RoHS Compliant
- Sealable :
- No
- Stack Height :
- 19.9898mm
- Factory Lead Time :
- 17 Weeks
- Height :
- 8mm
- Preloaded :
- yes
- Contact Finish :
- Gold
- Number of Rows :
- 2
- MIL Conformance :
- No
- Contact Finish Thickness - Mating :
- 762 nm
- Mating Alignment :
- With
- Housing Color :
- Natural
- Published :
- 2006
- Min Operating Temperature :
- -40°C
- Connector Type :
- Plug, Center Strip Contacts
- Pitch :
- 0.031 0.80mm
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Row Spacing :
- 2.4 mm
- PCB Mount Retention :
- Without
- Stack Height (Mating) :
- 8mm 12mm 16mm 20mm
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Option :
- GENERAL PURPOSE
- Operating Supply Voltage :
- 100V
- Mounting Type :
- Surface Mount
- IEC Conformance :
- No
- Number of Positions :
- 100
- Pbfree Code :
- yes
- ELV :
- Compliant
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Height Above Board :
- 0.299 7.60mm
- Series :
- Free Height (FH)
- Contact Gender :
- Male
- Termination :
- SMD/SMT
- Filter Feature :
- No
- Lifecycle Status :
- ACTIVE (Last Updated: 2 days ago)
- Mixed Contacts :
- No
- Flammability Rating :
- UL94 V-0
- Datasheets
- 6123002-4
Plug, Center Strip Contacts Tube 2 Rows 0.031 0.80mm Surface Mount 100 Positions Free Height (FH) Gold SMD/SMT Brass
6123002-4 Overview
Packaging is Plug, Center Strip Contacts.Packaging for the product is carried out via a Tube case.Surface Mount is the mounting type.As a product of the Free Height (FH) Series, it can be found in this category.By operating the device, Board Guide is maintained at all times.When mounting this part, a Surface Mount socket must be used.Temperatures below 125°C are best for using it.There's a minimum temperature of -40°C for this device.In view of the fact that this device can operate with a 100V supply, it is appropriate for use with that device.
6123002-4 Features
Free Height (FH) series
Package / Case: Tube
Mounting Type:Surface Mount
Max Operating temperature at -40°C
6123002-4 Applications
There are a lot of TE Connectivity AMP Connectors
6123002-4 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
