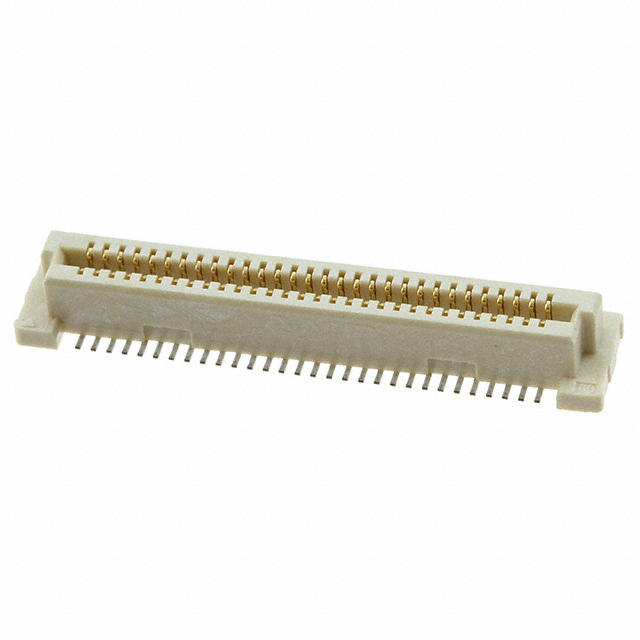

6123000-2

Manufacturer :

TE Connectivity AMP Connectors

Product Category :

Arrays, Edge Type, Mezzanine (Board to Board)

Insertion Force-Max :

.8896 N

ELV :

Compliant

Contact Finish Thickness - Mating :

762 nm

Min Operating Temperature :

-40°C

Stack Height :

6mm

Durability :

100 Cycles

Series :

Free Height (FH)

Rated Current (Signal) :

0.5A

Row Spacing :

2.4 mm

Number of Rows :

2

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Number of Conductors :

ONE

PCB Mount Retention :

Without

Contact Finish :

Gold

Gender :

Receptacle

Factory Lead Time :

16 Weeks

Pitch :

0.031 0.80mm

PCB Contact Pattern :

RECTANGULAR

Filter Feature :

No

Body Depth :

0.148 inch

Mating Alignment :

With

Total Number of Contacts :

60

Sealable :

No

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Withdrawl Force-Min :

.0973 N

Housing Color :

Natural

Feature :

Board Guide

Published :

2006

Operating Supply Voltage :

100V

Plating Thickness :

30μin

Insulation Resistance :

2MOhm

HTS Code :

8536.69.40.40

JESD-609 Code :

e4

Contact Resistance :

30mOhm

Packaging :

Tube

Dielectric Withstanding Voltage :

500VAC V

Flammability Rating :

UL94 V-0

Mount :

Surface Mount

Contact Finish Thickness :

30.0μin 0.76μm

Number Of PCB Rows :

2

DIN Conformance :

No

Stack Height (Mating) :

5mm 6mm 7mm 8mm

Preloaded :

yes

Orientation :

Vertical

ECCN Code :

EAR99

Reference Standard :

UL

Contact Current Rating :

500mA

Circuit Application :

Signal

Contact Pattern :

RECTANGULAR

Housing Material :

Polymer

MIL Conformance :

No

Reliability :

COMMERCIAL

Lifecycle Status :

ACTIVE (Last Updated: 1 day ago)

IEC Conformance :

No

Max Operating Temperature :

125°C

Polarization Key :

POLARIZED HOUSING

Height :

5mm

Termination :

SMD/SMT

Body Length or Diameter :

1.173 inch

Number of Positions :

60

Connector Type :

Receptacle, Outer Shroud Contacts

Mounting Type :

Surface Mount

Option :

GENERAL PURPOSE

Mixed Contacts :

No

Pbfree Code :

yes

RoHS Status :

RoHS Compliant

Contact Style :

BELLOWED TYPE

Height Above Board :

0.148 3.75mm
