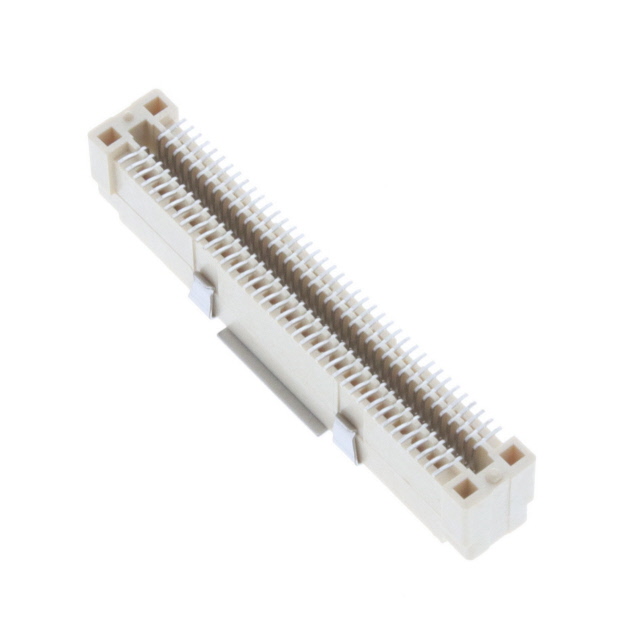

6123001-3
Or copy the link below:
- Mfr.Part #
- 6123001-3
- Manufacturer
- TE Connectivity AMP Connectors
- Package / Case
- Datasheet
- Download
- Description
- CONN PLUG 80POS SMD GOLD
- Stock
- 5
- In Stock ：
- 5
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- TE Connectivity AMP Connectors
- Product Category :
- Arrays, Edge Type, Mezzanine (Board to Board)
- RoHS Status :
- RoHS Compliant
- Insulation Resistance :
- 2MOhm
- Pitch :
- 0.031 0.80mm
- Total Number of Contacts :
- 80
- Mating Alignment :
- With
- Row Spacing :
- 2.4 mm
- Height :
- 8mm
- Contact Material :
- Brass
- Contact Gender :
- Male
- Flammability Rating :
- UL94 V-0
- Min Operating Temperature :
- -40°C
- Contact Current Rating :
- 500mA
- Operating Supply Voltage :
- 100V
- Preloaded :
- yes
- Stack Height :
- 19.9898mm
- Contact Finish :
- Gold
- Housing Material :
- Polymer
- Height Above Board :
- 0.309 7.85mm
- Sealable :
- No
- Mixed Contacts :
- No
- Mount :
- Surface Mount
- Mating Information :
- MULTIPLE MATING PARTS AVAILABLE
- Pbfree Code :
- yes
- Housing Color :
- Natural
- ELV :
- Compliant
- Circuit Application :
- Signal
- Filter Feature :
- No
- Contact Finish Thickness :
- 30.0μin 0.76μm
- Max Operating Temperature :
- 125°C
- Published :
- 2006
- DIN Conformance :
- No
- Option :
- GENERAL PURPOSE
- Factory Lead Time :
- 9 Weeks
- Connector Type :
- Plug, Center Strip Contacts
- PCB Mount Retention :
- Without
- Packaging :
- Tape and Reel (TR)
- Contact Finish Thickness - Mating :
- 760 nm
- Lifecycle Status :
- ACTIVE (Last Updated: 4 days ago)
- Orientation :
- Vertical
- Series :
- Free Height (FH)
- MIL Conformance :
- No
- Number of Rows :
- 2
- Mounting Type :
- Surface Mount
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- IEC Conformance :
- No
- Number of Positions :
- 80
- Termination :
- SMD/SMT
- Feature :
- Board Guide
- Datasheets
- 6123001-3
Plug, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 80 Positions Free Height (FH) Gold SMD/SMT Brass
6123001-3 Overview
Packaging is in the form of Plug, Center Strip Contacts.An orange Tape & Reel (TR) case is used to package the product.This device has a Surface Mount mounting type.Specifically, it is one of the products in the Free Height (FH) Series.In operation, Board Guide can be maintained as long as Board Guide is unchanged.A Surface Mount socket is required for the mounting of this part.If the temperature is below 125°C, it's best to use it.-40°C is the minimum temperature for this device.This device can be used with a 100V supply, as it is designed for that operation.
6123001-3 Features
Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C
6123001-3 Applications
There are a lot of TE Connectivity AMP Connectors
6123001-3 Rectangular Connectors applications.
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
- Telecommunications
- Data Technology
