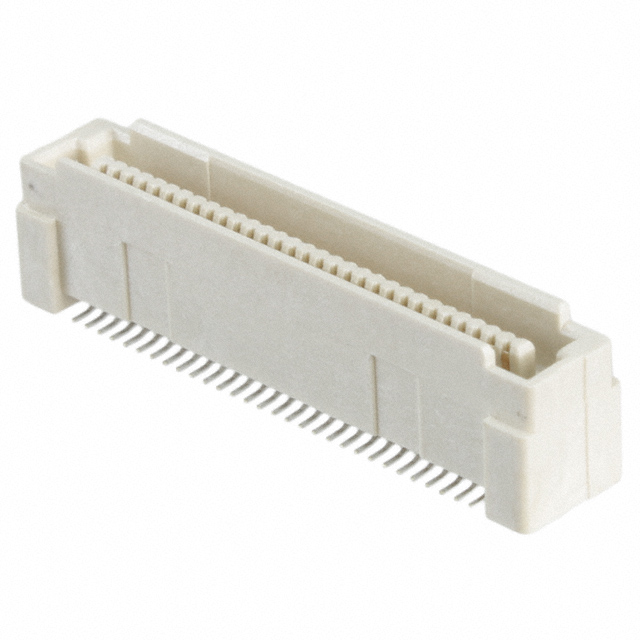

6123001-2

Share

Or copy the link below:

Mfr.Part #
6123001-2
Manufacturer
TE Connectivity AMP Connectors
Package / Case
Datasheet
Download
Description
CONN PLUG 60POS SMD GOLD
Stock
509
In Stock :
509

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
TE Connectivity AMP Connectors
Product Category :
Arrays, Edge Type, Mezzanine (Board to Board)
Contact Current Rating :
500mA
Pbfree Code :
yes
Number of Positions :
60
RoHS Status :
RoHS Compliant
Pitch :
0.031 0.80mm
Published :
2005
Total Number of Contacts :
60
PCB Mount Retention :
Without
Mixed Contacts :
No
Mount :
Surface Mount
MIL Conformance :
No
Contact Finish :
Gold
Option :
GENERAL PURPOSE
Orientation :
Vertical
Number of Rows :
2
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Height :
8mm
Sealable :
No
Contact Finish Thickness - Mating :
762 nm
Row Spacing :
2.4 mm
ELV :
Compliant
Max Operating Temperature :
125°C
Height Above Board :
0.309 7.85mm
Mounting Type :
Surface Mount
Lead Free :
Lead Free
Lifecycle Status :
ACTIVE (Last Updated: 5 months ago)
Length :
29.8mm
Preloaded :
yes
Feature :
Board Guide
Depth :
6.6mm
Housing Material :
Polymer
Factory Lead Time :
14 Weeks
IEC Conformance :
No
Contact Gender :
Male
Flammability Rating :
UL94 V-0
Series :
Free Height (FH)
Contact Material :
Brass
Filter Feature :
No
Termination :
SMD/SMT
Min Operating Temperature :
-40°C
Moisture Sensitivity Level (MSL) :
1 (Unlimited)
Packaging :
Tape and Reel (TR)
DIN Conformance :
No
Operating Supply Voltage :
100V
Stack Height :
19.9898mm
Housing Color :
Natural
Insulation Resistance :
2MOhm
Connector Type :
Plug, Center Strip Contacts
Contact Finish Thickness :
30.0μin 0.76μm
Mating Alignment :
With
Contact Resistance :
30mOhm
Datasheets
6123001-2
Introducing Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 6123001-2 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:Surface Mount, 6123001-2 pinout, 6123001-2 datasheet PDF, 6123001-2 amp .Beyond Arrays, Edge Type, Mezzanine (Board to Board) TE Connectivity AMP Connectors 6123001-2 ,we also offer 5054761010, 5035481222, AXT510124, Our vast inventory has you covered. Contact us now for immediate solutions.

TE Connectivity AMP Connectors 6123001-2


Plug, Center Strip Contacts Tape & Reel (TR) 2 Rows 0.031 0.80mm Surface Mount 60 Positions Free Height (FH) Gold SMD/SMT Brass

6123001-2 Overview


The product is packaged in Plug, Center Strip Contacts.It has been determined that a Tape & Reel (TR) case is necessary to package the product.This device is mounted in the Surface Mount position.There is a product in the Free Height (FH) Series.This can be ensured when the system is in operation by maintaining Board Guide.For mounting this component, a Surface Mount socket is required.When the temperature is below 125°C, it is best to use it.A minimum operating temperature of -40°C is required for this device.Since this device is suitable for operation with a 100V supply, it may be used with this supply as well.

6123001-2 Features


Free Height (FH) series
Package / Case: Tape & Reel (TR)
Mounting Type:Surface Mount
Max Operating temperature at -40°C


6123001-2 Applications


There are a lot of TE Connectivity AMP Connectors
6123001-2 Rectangular Connectors applications.


  • Embedded systems
  • Datacom
  • Communication
  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
