43160-7306

Share

Or copy the link below:

Mfr.Part #
43160-7306
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
SABRE 6CKT RA V0 HDR 125LK LGTAI
Stock
50
In Stock :
50

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Blade Type Power Connector Assemblies
Connector Type :
RECTANGULAR POWER CONNECTOR
Product Status :
Active
Termination Post Length :
5.33 mm
Housing Material :
Nylon 4/6
Terminal Length :
0.21 inch
Additional Feature :
Sabre
Pitch (mm) :
7.5(mm)
Number of Ports :
1(Port)
PCB Contact Row Spacing :
3.175 mm
Product Type :
Headers and Wire Housings
Product Diameter (mm) :
Not Required(mm)
Mounting Option 1 :
LOCKING
Body Orientation :
RIGHT ANGLE
Total Number of Contacts :
6
Mounting Type :
BOARD
Product Category :
Headers and Wire Housings
UL Flammability Code :
94V-0
Body Breadth :
0.454 inch
Flammability Rating :
UL 94 V-0
Shell Material :
GLASS FILLED POLYAMIDE46
Gender :
HDR
Number of Circuits :
6
MIL Conformance :
No
Min Operating Temperature :
-40 °C
PCB Contact Pattern :
RECTANGULAR
Number of Positions :
6
Insulator Color :
Black
Lifecycle Status :
Production (Last Updated: 2 years ago)
Pbfree Code :
yes
Insulation Resistance :
1000000000 Ω
Body/Shell Style :
Receptacle
Product Height (mm) :
11.53(mm)
HTS Code :
8536.69.40.30
Operating Temperature Max Deg. C :
75C
Board Mounting Option :
SPLIT BOARD LOCK
Current Rating (Max) :
18/Contact(A)
Brand :
Molex
Termination Type :
Solder
Mixed Contacts :
No
Operating Temperature Min Deg. C :
-40C
Reach Compliance Code :
Compliant
Number of Rows :
1
Contact Gender :
Pin (Male)
Max Operating Temperature :
75 °C
Contact Resistance Max :
30(mohm)
Accessory Type :
-
Housing Color :
Black
Application :
Power
Product Length (mm) :
51.05(mm)
Number of Contacts :
6(POS)
Contact Material :
Brass
Manufacturer Lifecycle Status :
ACTIVE (Last Updated: 2 years ago)
Contact Type :
-
DIN Conformance :
No
Termination Style :
Solder Pin
Minimum Operating Temperature :
- 40 C
Orientation :
RIGHT ANGLE
Termination Method :
Solder
Package :
Box
Reliability :
COMMERCIAL
Contact Finish Termination :
TIN (35) OVER COPPER
Body Depth :
0.581 inch
Product :
Headers
Subcategory :
Headers and Wire Housings
Operating Temp Range :
-40C to 75C
Packaging :
Tray
Insertion Force-Max :
13.344 N
Mounting Angle :
RIGHT ANGLE
Contact Resistance :
30 mΩ
Series :
*
Contact Plating :
Tin
Type :
Wire to Board
IEC Conformance :
No
Tradename :
Sabre
Flammability :
94V-0
ECCN Code :
EAR99
Manufacturer :
Molex
Number of Contact Rows :
1
Option :
GENERAL PURPOSE
Number of Terminals :
12
Mount :
Through Hole
Pitch :
7.5 mm
Termination :
Through Hole
Terminal Pitch :
7.493 mm
Country of Origin :
US
Voltage Rating :
600 V
Filter Feature :
No
Mating Contact Pitch :
0.295 inch
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Maximum Operating Temperature :
+ 75 C
JESD-609 Code :
e3
Plating :
Tin
Contact Pattern :
RECTANGULAR
Product Depth (mm) :
19.78(mm)
Voltage Rating Max :
600V
Current Rating :
18 A
Glow Wire Compliant :
Compliant
Empty Shell :
No
Mounting Style :
Through Hole
Withdrawl Force-Min :
2.224 N
RoHS :
Compliant
Datasheets
43160-7306
Introducing Blade Type Power Connector Assemblies Molex 43160-7306 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:BOARD, Type:Wire to Board, 43160-7306 pinout, 43160-7306 datasheet PDF, 43160-7306 amp .Beyond Blade Type Power Connector Assemblies Molex 43160-7306 ,we also offer 5787422-1, 1-1612962-3, 5787446-1, Our vast inventory has you covered. Contact us now for immediate solutions.

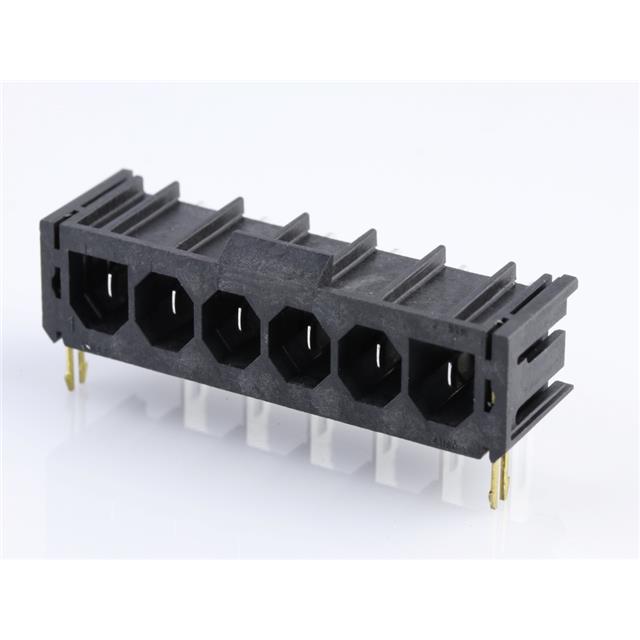

Molex 43160-7306
