43160-0305

Share

Or copy the link below:

Mfr.Part #
43160-0305
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
SABRE 5CKT VER V0 HDR W/OLK LGTA
Stock
1,115
In Stock :
1,115

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Blade Type Power Connector Assemblies
Operating Temp Range :
-40C to 75C
Manufacturer :
Molex
Number of Positions :
5 Position
Flammability :
94V-0
Product :
Headers
Number of Contact Rows :
1
Contact Plating :
Tin
Current Rating :
18 A
Housing Color :
Black
Reference Standard :
UL
IEC Conformance :
No
ECCN Code :
EAR99
Contact Type :
-
Product Status :
Active
RoHS :
Details
Mounting Option 1 :
LOCKING
Additional Feature :
SABRE, POLARIZED, POSITIVE LOCK
Product Length (mm) :
43.56(mm)
Subcategory :
Headers and Wire Housings
Gender :
Header
Number of Contacts :
5(POS)
Number of Ports :
1(Port)
Insertion Force-Max :
13.344 N
Reach Compliance Code :
Compliant
Contact Resistance Max :
30(mohm)
Accessory Type :
-
Shell Material :
GLASS FILLED POLYAMIDE46
Empty Shell :
No
Termination Post Length :
5.33 mm
Dielectric Withstanding Voltage :
5000VAC V
Product Depth (mm) :
11.53(mm)
HTS Code :
8536.69.40.30
Withdrawl Force-Min :
2.1962 N
Filter Feature :
No
Minimum Operating Temperature :
- 40 C
Product Length :
43.56 mm
JESD-609 Code :
e3
Maximum Operating Temperature :
+ 75 C
Brand :
Molex
DIN Conformance :
No
Termination Style :
Solder Pin
Mounting :
Through Hole
Product Diameter (mm) :
Not Required(mm)
Base/Housing Material :
NYLON 46
UL Flammability Code :
94V-0
Number of Rows :
1 Row
Packaging :
Bag
Factory Lead Time :
9 Weeks
Contact Arrangement :
S0P5
Durability :
25 Cycles
Pitch (mm) :
7.5(mm)
Reliability :
COMMERCIAL
Contact Material :
Brass
Current Rating (Max) :
18/Contact(A)
Mounting Angle :
Straight
Type :
Wire to Board
Housing Material :
Nylon 4/6
MIL Conformance :
No
Operating Temperature :
-40 to 75 °C
Option :
GENERAL PURPOSE
Series :
43160
Pitch :
7.4900 mm
Application :
Power
Total Number of Contacts :
5
Voltage Rating :
600 V
Termination Type :
Solder
Terminal Pitch :
7.493 mm
Board Mounting Option :
SPLIT BOARD LOCK
Body/Shell Style :
Receptacle
Package :
Box
Flammability Rating :
UL 94 V-0
Product Category :
Headers and Wire Housings
Body Depth :
0.581 inch
Contact Style :
BLADE PIN-SKT
Operating Temperature Max Deg. C :
75C
Mounting Style :
Through Hole
Mounting Type :
BOARD
Orientation :
Vertical
Insulator Color :
Black
Product Height (mm) :
19.78(mm)
Contact Resistance :
30 mΩ
Number of Terminals :
10
Insulation Resistance :
1000000000 Ω
Mixed Contacts :
No
Plating Thickness :
60u inch
Connector Type :
RECTANGULAR POWER CONNECTOR
Pbfree Code :
yes
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Contact Finish Termination :
TIN (35) OVER COPPER
Product Type :
Headers and Wire Housings
Body Orientation :
Straight
Operating Temperature Min Deg. C :
-40C
Terminal Length :
0.21 inch
Termination Method :
Solder
Tradename :
Sabre
Contact Gender :
Pin (Male)
Voltage Rating Max :
600V
Body Breadth :
0.454 inch
Datasheets
43160-0305
Introducing Blade Type Power Connector Assemblies Molex 43160-0305 from Chip IC,where excellence meets affordability. This product stands out with its Type:Wire to Board, Operating Temperature:-40 to 75 °C, Mounting Type:BOARD, 43160-0305 pinout, 43160-0305 datasheet PDF, 43160-0305 amp .Beyond Blade Type Power Connector Assemblies Molex 43160-0305 ,we also offer 5787422-1, 1-1612962-3, 5787446-1, Our vast inventory has you covered. Contact us now for immediate solutions.

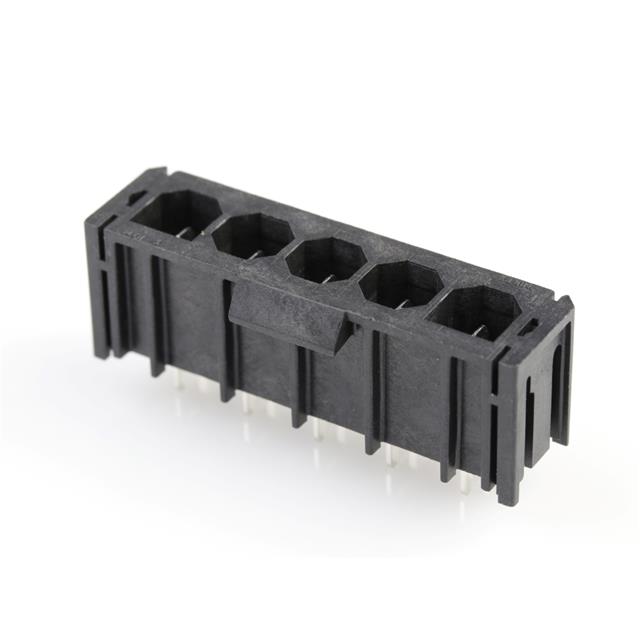

Molex 43160-0305
