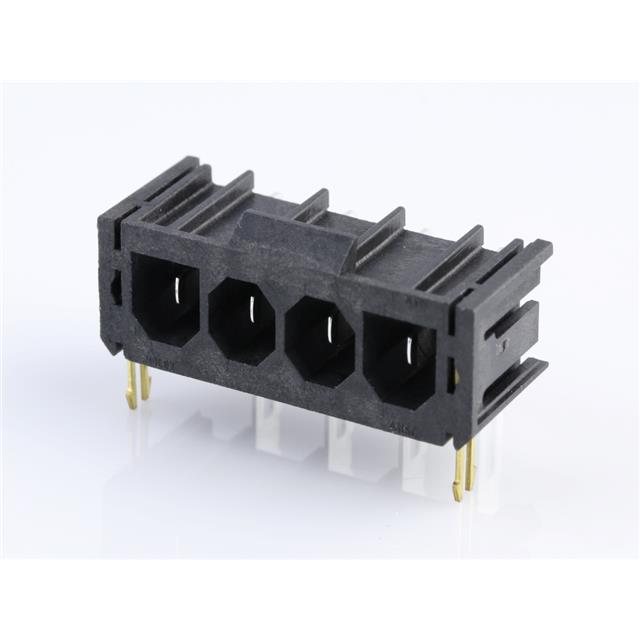

43160-7304

Manufacturer :

Molex

Product Category :

Blade Type Power Connector Assemblies

Current Rating (Max) :

18/Contact(A)

Body Depth :

0.581 inch

Mating Information :

MULTIPLE MATING PARTS AVAILABLE

Body/Shell Style :

Receptacle

Insertion Force-Max :

13.344 N

Product Diameter (mm) :

Not Required(mm)

Brand :

Molex

Tradename :

Sabre

Option :

GENERAL PURPOSE

ECCN Code :

EAR99

Housing Material :

Nylon 4/6

Connector Type :

RECTANGULAR POWER CONNECTOR

Product :

Headers

Terminal Length :

0.21 inch

Filter Feature :

No

Mixed Contacts :

No

MIL Conformance :

No

Type :

Wire to Board

Reach Compliance Code :

Compliant

Contact Finish Termination :

TIN (35) OVER COPPER

Product Depth (mm) :

19.78(mm)

Gender :

HDR

Total Number of Contacts :

4

Pitch :

7.5 mm

Termination Style :

Solder Pin

Flammability Rating :

UL 94 V-0

Mounting Style :

Through Hole

Withdrawl Force-Min :

2.224 N

Contact Material :

Brass

Mating Contact Pitch :

0.295 inch

Contact Resistance Max :

30(mohm)

Product Category :

Headers and Wire Housings

Body Orientation :

RIGHT ANGLE

Insulation Resistance :

1000000000 Ω

Termination Post Length :

5.33 mm

Mounting Type :

BOARD

Reliability :

COMMERCIAL

Contact Gender :

Pin (Male)

Number of Rows :

1 Row

Product Height (mm) :

11.53(mm)

IEC Conformance :

No

Number of Ports :

1(Port)

Number of Contacts :

4(POS)

Terminal Pitch :

7.493 mm

Operating Temperature Max Deg. C :

75C

UL Flammability Code :

94V-0

Minimum Operating Temperature :

- 40 C

Contact Pattern :

RECTANGULAR

Series :

43160

Number of Terminals :

8

Operating Temperature Min Deg. C :

-40C

Contact Resistance :

30 mΩ

Termination Type :

Solder

Product Status :

Active

Housing Color :

Black

DIN Conformance :

No

HTS Code :

8536.69.40.30

Package :

Box

JESD-609 Code :

e3

Contact Type :

-

Packaging :

Tray

Termination Method :

Solder

Manufacturer :

Molex

Body Breadth :

0.454 inch

Subcategory :

Headers and Wire Housings

RoHS :

Details

Operating Temp Range :

-40C to 75C

Mounting Option 1 :

LOCKING

Mounting Angle :

RIGHT ANGLE

Accessory Type :

-

Insulator Color :

Black

Number of Positions :

4 Position

Voltage Rating Max :

600V

Voltage Rating :

600 V

Contact Plating :

Tin

PCB Contact Row Spacing :

3.175 mm

Shell Material :

GLASS FILLED POLYAMIDE46

Additional Feature :

Sabre

Maximum Operating Temperature :

+ 75 C

Pbfree Code :

yes

Pitch (mm) :

7.5(mm)

Board Mounting Option :

SPLIT BOARD LOCK

Product Length (mm) :

36.07(mm)

PCB Contact Pattern :

RECTANGULAR

Empty Shell :

No

Number of Contact Rows :

1

Product Type :

Headers and Wire Housings

Current Rating :

18 A

Application :

Power, Wire-to-Board
