Mfr.Part #
43160-6306
Manufacturer
Molex
Package / Case
Datasheet
Download
Description
SABRE 6CKT VER V0 HDR 125LK LGTA
Stock
591
In Stock :
591

Request A Quote(RFQ)

* Fullname:
* Company:
* E-Mail:
  Phone:
  Comment:
* Quantity:
Manufacturer :
Molex
Product Category :
Blade Type Power Connector Assemblies
Product Status :
Active
Body/Shell Style :
Receptacle
Voltage Rating :
600 V
Dielectric Withstanding Voltage :
5000VAC V
Number of Contacts :
6(POS)
Subcategory :
Headers and Wire Housings
Orientation :
Vertical
Mating Information :
MULTIPLE MATING PARTS AVAILABLE
Reach Compliance Code :
Compliant
Connector Type :
RECTANGULAR POWER CONNECTOR
Mounting Style :
Through Hole
PCB Contact Pattern :
RECTANGULAR
Durability :
25 Cycles
Accessory Type :
-
Polarization Key :
POLARIZED HOUSING
IEC Conformance :
No
Flammability Rating :
UL 94 V-0
Product Height (mm) :
19.78(mm)
Reliability :
COMMERCIAL
Empty Shell :
No
Number of Contact Rows :
1
Contact Pattern :
RECTANGULAR
Pbfree Code :
yes
UL Flammability Code :
94V-0
Body Orientation :
Straight
Operating Temperature Min Deg. C :
-40C
Mounting Type :
BOARD
Number of Positions :
6 Position
Termination Post Length :
5.33 mm
Plating Thickness :
80u inch
Application :
Power
Termination Style :
Solder Pin
Terminal Pitch :
7.493 mm
Mixed Contacts :
No
Board Mounting Option :
SPLIT BOARD LOCK
Pitch (mm) :
7.5(mm)
Housing Material :
Nylon 4/6
Mating Contact Pitch :
0.295 inch
HTS Code :
8536.69.40.30
Voltage Rating Max :
600V
Number of Terminals :
12
Product Category :
Headers and Wire Housings
Rated Current (Signal) :
18 A
DIN Conformance :
No
Number of Ports :
1(Port)
Reference Standard :
CSA, UL
Shell Material :
GLASS FILLED POLYAMIDE46
Contact Resistance Max :
30(mohm)
Manufacturer :
Molex
Number of Rows :
1 Row
Current Rating (Max) :
18/Contact(A)
Termination Type :
Solder
PCB Contact Row Spacing :
3.175 mm
Contact Gender :
Pin (Male)
Contact Finish Termination :
TIN (35) OVER COPPER
Mounting Option 2 :
LOCKING
Packaging :
Bag
Additional Feature :
SABRE, POLARIZED, POSITIVE LOCK
Current Rating :
18 A
Brand :
Molex
Series :
43160
Termination Method :
Solder
Mounting Option 1 :
POLARIZED LCK
Insertion Force-Max :
13.344 N
Number Of PCB Rows :
2
Product Depth (mm) :
11.53(mm)
Total Number of Contacts :
6
Filter Feature :
No
Pitch :
7.5 mm
RoHS :
Details
ECCN Code :
EAR99
Flammability :
94V-0
Contact Type :
-
Terminal Length :
0.15 inch
Operating Temp Range :
-40C to 75C
Withdrawl Force-Min :
4.448 N
Type :
Wire to Board
MIL Conformance :
No
Product Length (mm) :
51.05(mm)
JESD-609 Code :
e3
Product :
Headers
Contact Resistance :
10 MΩ
Contact Material :
Brass
Tradename :
Sabre
Insulation Resistance :
1000000000 Ω
Contact Plating :
TIN OVER NICKEL
Mounting Angle :
Straight
Option :
GENERAL PURPOSE
Gender :
HDR
Product Type :
Headers and Wire Housings
Insulator Color :
Black
Contact Style :
BLADE PIN-SKT
Package :
Box
Minimum Operating Temperature :
- 40 C
Operating Temperature Max Deg. C :
75C
Maximum Operating Temperature :
+ 75 C
Housing Color :
Black
Product Diameter (mm) :
Not Required(mm)
Body Depth :
0.581 inch
Datasheets
43160-6306
Introducing Blade Type Power Connector Assemblies Molex 43160-6306 from Chip IC,where excellence meets affordability. This product stands out with its Mounting Type:BOARD, Type:Wire to Board, 43160-6306 pinout, 43160-6306 datasheet PDF, 43160-6306 amp .Beyond Blade Type Power Connector Assemblies Molex 43160-6306 ,we also offer 5787422-1, 1-1612962-3, 5787446-1, Our vast inventory has you covered. Contact us now for immediate solutions.

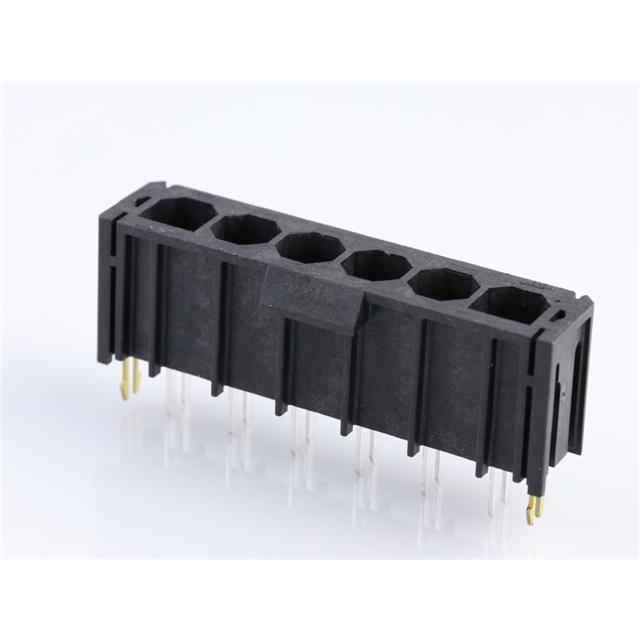

Molex 43160-6306
