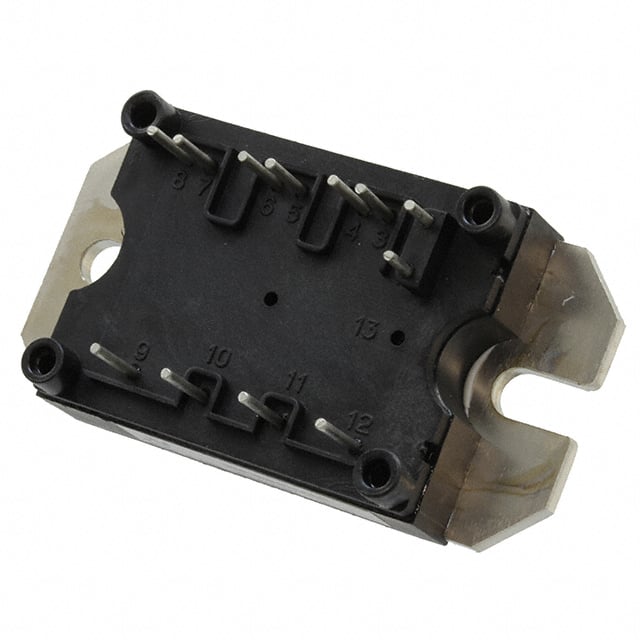

VS-50MT060WHTAPBF
Or copy the link below:
- Mfr.Part #
- VS-50MT060WHTAPBF
- Manufacturer
- Vishay
- Package / Case
- 12-MTP Module
- Datasheet
- Download
- Description
- IGBT MODULE 600V 114A 658W MTP
- Stock
- 1
- In Stock ：
- 1
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Vishay
- Product Category :
- Transistors - IGBTs - Modules
- Factory Lead Time :
- 20 Weeks
- Input Capacitance (Cies) @ Vce :
- 7.1nF @ 30V
- NTC Thermistor :
- No
- Height :
- 16mm
- Input :
- Standard
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Operating Temperature :
- -40°C~150°C TJ
- Vce(on) (Max) @ Vge, Ic :
- 3.2V @ 15V, 100A
- Published :
- 2009
- Pbfree Code :
- yes
- Width :
- 33mm
- Max Power Dissipation :
- 658W
- Input Capacitance :
- 7.1nF
- REACH SVHC :
- Unknown
- Collector Emitter Saturation Voltage :
- 2.3V
- Package / Case :
- 12-MTP Module
- Collector Emitter Breakdown Voltage :
- 600V
- Mounting Type :
- Chassis Mount
- Power Dissipation :
- 658W
- Current - Collector Cutoff (Max) :
- 400μA
- Max Collector Current :
- 114A
- Number of Pins :
- 12
- Element Configuration :
- Dual
- ECCN Code :
- EAR99
- Length :
- 63.5mm
- Mount :
- Chassis Mount, Screw
- RoHS Status :
- ROHS3 Compliant
- Configuration :
- Half Bridge
- Collector Emitter Voltage (VCEO) :
- 600V
- Datasheets
- VS-50MT060WHTAPBF
VS-50MT060WHTAPBF datasheet pdf and Transistors - IGBTs - Modules product details from Vishay Semiconductor Diodes Division stock available at
