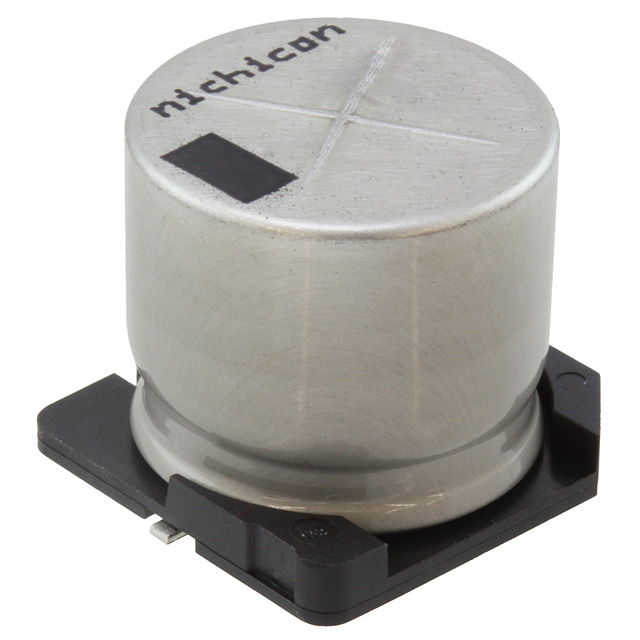

UUJ1J331MNQ1MS

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Terminal Shape :

Flat

Radiation Hardening :

No

Ripple Current @ High Frequency :

735mA @ 10kHz

Factory Lead Time :

19 Weeks

HTS Code :

8532.22.00

Lead Pitch :

6.3mm

Length :

20.1mm

Series :

UUJ

Voltage - Rated DC :

63V

Surface Mount Land Size :

0.752Lx0.752W 19.10mmx19.10mm

Height :

16.5mm

Lifetime @ Temp :

5000 Hrs @ 105°C

Diameter :

18mm

Number of Terminations :

2

Leakage Current :

4μA

Tolerance :

±20%

Voltage :

63V

JESD-609 Code :

e3

Ripple Current :

490mA

Height Seated (Max) :

0.689 17.50mm

Size Code :

7575

Width :

19.1mm

ECCN Code :

EAR99

Size / Dimension :

0.709Dia 18.00mm

Dielectric Material :

ALUMINUM (WET)

Terminal Finish :

Matte Tin (Sn)

Applications :

GENERAL PURPOSE

Mounting Type :

Surface Mount

Ripple Current @ Low Frequency :

490mA @ 120Hz

Operating Temperature :

-55°C~105°C

Mount :

Surface Mount

RoHS Status :

ROHS3 Compliant

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Tan Delta :

0.1

Life (Hours) :

5000 hours

Termination :

SMD/SMT

Polarization :

Polar

Packaging :

Tape and Reel (TR)

Capacitance :

330µF

Lead Diameter :

1.4 mm

Package / Case :

Radial, Can - SMD

Pbfree Code :

yes

Published :

2009
