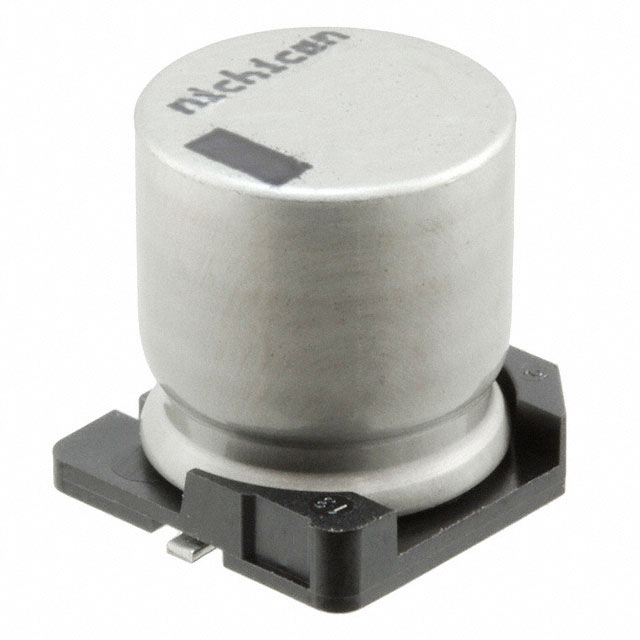

UUJ1E331MNQ1ZD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Voltage - Rated DC :

25V

Mount :

Surface Mount

Applications :

GENERAL PURPOSE

Packaging :

Tray

ECCN Code :

EAR99

JESD-609 Code :

e3

Leakage Current :

3μA

Published :

2015

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Life (Hours) :

5000 hours

Width :

13.6mm

Factory Lead Time :

24 Weeks

Lifetime @ Temp :

5000 Hrs @ 105°C

Package / Case :

Radial, Can - SMD

Termination :

SMD/SMT

Pbfree Code :

yes

Height Seated (Max) :

0.571 14.50mm

Dielectric Material :

ALUMINUM (WET)

Terminal Shape :

Flat

Tolerance :

±20%

Capacitance :

330µF

Size / Dimension :

0.492Dia 12.50mm

HTS Code :

8532.22.00

Surface Mount Land Size :

0.535Lx0.535W 13.60mmx13.60mm

Number of Terminations :

2

Terminal Finish :

Matte Tin (Sn)

Mounting Type :

Surface Mount

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Length :

14.6mm

Size Code :

5454

Ripple Current @ Low Frequency :

320mA @ 120Hz

Series :

UUJ

RoHS Status :

ROHS3 Compliant

Weight :

2.350005g

Ripple Current :

320mA

Polarization :

Polar

Diameter :

12.5mm

Tan Delta :

0.16

Operating Temperature :

-55°C~105°C
