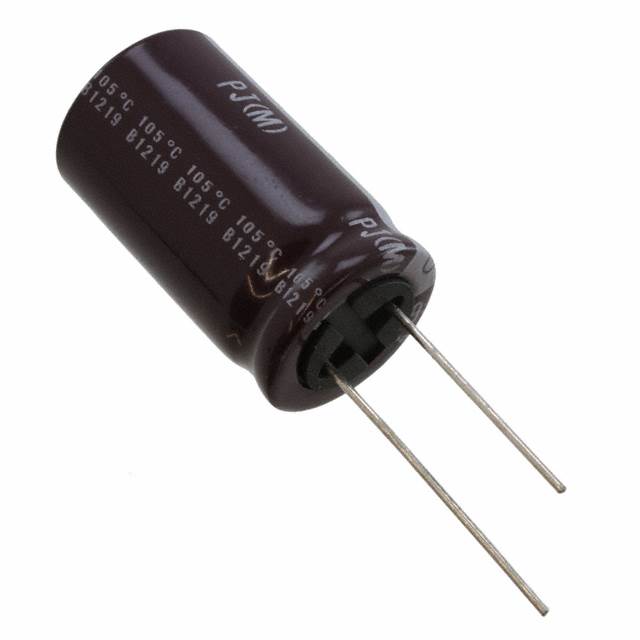

UPJ0J103MHD6

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Diameter :

18mm

Height :

31.5mm

Voltage - Rated DC :

6.3V

Ripple Current :

2.24A

Size / Dimension :

0.709Dia 18.00mm

Radiation Hardening :

No

Lead Pitch :

7.5mm

Tan Delta :

0.4

Applications :

GENERAL PURPOSE

RoHS Status :

ROHS3 Compliant

Pbfree Code :

yes

ECCN Code :

EAR99

Impedance :

28mOhm

Ripple Current @ Low Frequency :

2.24A @ 120Hz

Life (Hours) :

5000 hours

Polarization :

Polar

Capacitance :

10000µF

Feature :

GENERAL PURPOSE

JESD-609 Code :

e3

Ripple Current @ High Frequency :

2.49A @ 10kHz

Termination :

Radial

Height Seated (Max) :

1.299 33.00mm

Leakage Current :

1.89mA

Terminal Finish :

Matte Tin (Sn)

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

2

Terminal Shape :

Wire

Published :

2015

Tolerance :

±20%

Mounting Type :

Through Hole

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

Series :

UPJ

Mount :

Through Hole

Factory Lead Time :

19 Weeks

Operating Temperature :

-55°C~105°C

Lifetime @ Temp :

5000 Hrs @ 105°C

HTS Code :

8532.22.00

Packaging :

Bulk

Dielectric Material :

ALUMINUM (WET)

Package / Case :

Radial, Can

Lead Spacing :

0.295 7.50mm
