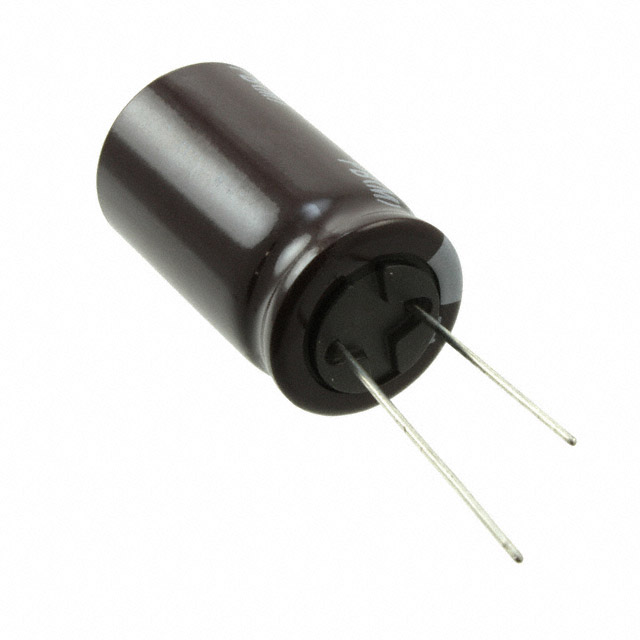

UPB2E151MHD

Manufacturer :

Nichicon

Product Category :

Aluminum Electrolytic Capacitors

Terminal Pitch :

7.5mm

Capacitance :

150µF

Voltage - Rated DC :

250V

Applications :

GENERAL PURPOSE

Tolerance :

±20%

Lead Spacing :

0.295 7.50mm

Ripple Current @ Low Frequency :

750mA @ 120Hz

Mounting Type :

Through Hole

Lead Pitch :

7.493mm

Package / Case :

Radial, Can

Tan Delta :

0.15

Leakage Current :

2.26mA

Polarity :

POLARIZED

Life (Hours) :

5000 hours

Packing Method :

Tape

JESD-609 Code :

e3

Ripple Current @ High Frequency :

1.5A @ 100kHz

Feature :

GENERAL PURPOSE

Moisture Sensitivity Level (MSL) :

Not Applicable

Terminal Finish :

Matte Tin (Sn)

Lifetime @ Temp :

5000 Hrs @ 105°C

Packaging :

Bulk

HTS Code :

8532.22.00

Operating Temperature :

-25°C~105°C

Number of Terminations :

2

Termination :

Radial

Ripple Current :

750mA

Pbfree Code :

yes

Length :

31.5mm

Mount :

Through Hole

Published :

2009

Series :

UPB

Size / Dimension :

0.709Dia 18.00mm

RoHS Status :

RoHS Compliant

Diameter :

18mm

Dielectric Material :

ALUMINUM (WET)

Terminal Shape :

Wire

Capacitor Type :

ALUMINUM ELECTROLYTIC CAPACITOR

ECCN Code :

EAR99

Height Seated (Max) :

1.299 33.00mm
