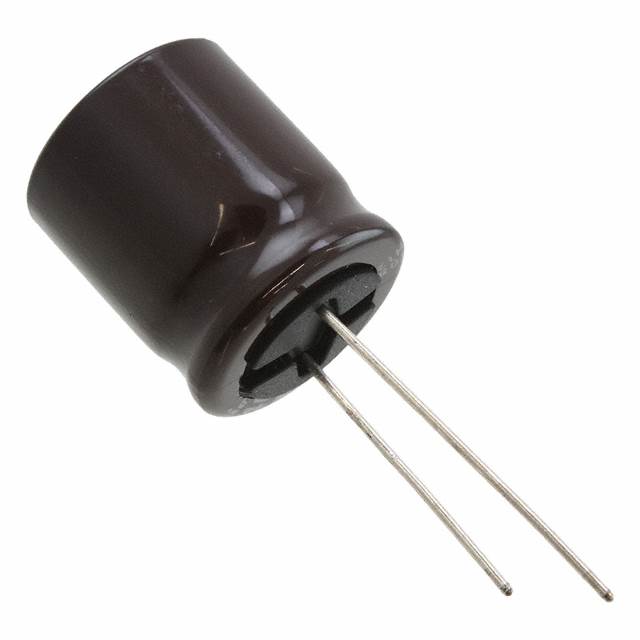

UAS2D151MHD6
Or copy the link below:
- Mfr.Part #
- UAS2D151MHD6
- Manufacturer
- Nichicon
- Package / Case
- Radial, Can
- Datasheet
- Download
- Description
- CAP ALUM 150UF 20% 200V RADIAL
- Stock
- 26,258
- In Stock ：
- 26,258
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Nichicon
- Product Category :
- Aluminum Electrolytic Capacitors
- JESD-609 Code :
- e3
- HTS Code :
- 8532.22.00
- Height Seated (Max) :
- 0.866 22.00mm
- Terminal Pitch :
- 7.5mm
- Ripple Current :
- 460mA
- Size / Dimension :
- 0.709Dia 18.00mm
- Life (Hours) :
- 2000 hours
- Package / Case :
- Radial, Can
- Capacitance :
- 150µF
- Tan Delta :
- 0.15
- Rated (DC) Voltage (URdc) :
- 200V
- Terminal Finish :
- Matte Tin (Sn)
- Number of Terminations :
- 2
- Published :
- 2012
- Tolerance :
- ±20%
- Lead Pitch :
- 7.493mm
- Operating Temperature :
- -40°C~105°C
- Pbfree Code :
- yes
- Moisture Sensitivity Level (MSL) :
- 1 (Unlimited)
- Mount :
- Through Hole
- Leakage Current :
- 1.3mA
- Capacitor Type :
- ALUMINUM ELECTROLYTIC CAPACITOR
- Feature :
- GENERAL PURPOSE
- Lifetime @ Temp :
- 2000 Hrs @ 105°C
- Factory Lead Time :
- 17 Weeks
- Ripple Current @ Low Frequency :
- 460mA @ 120Hz
- Series :
- UAS
- Length :
- 20mm
- Dielectric Material :
- ALUMINUM (WET)
- Packaging :
- Bulk
- Voltage - Rated :
- 200V
- Terminal Shape :
- Wire
- Lead Spacing :
- 0.295 7.50mm
- Mounting Type :
- Through Hole
- Diameter :
- 18mm
- Applications :
- GENERAL PURPOSE
- RoHS Status :
- ROHS3 Compliant
- Polarization :
- Polar
- Ripple Current @ High Frequency :
- 736mA @ 10kHz
- ECCN Code :
- EAR99
- Datasheets
- UAS2D151MHD6
UAS2D151MHD6 Documents
UAS 150μF Capacitor ±20% Bulk Through Hole 460mA 0.709Dia 18.00mm -40°C~105°C Polar 7.493mm Radial, Can
