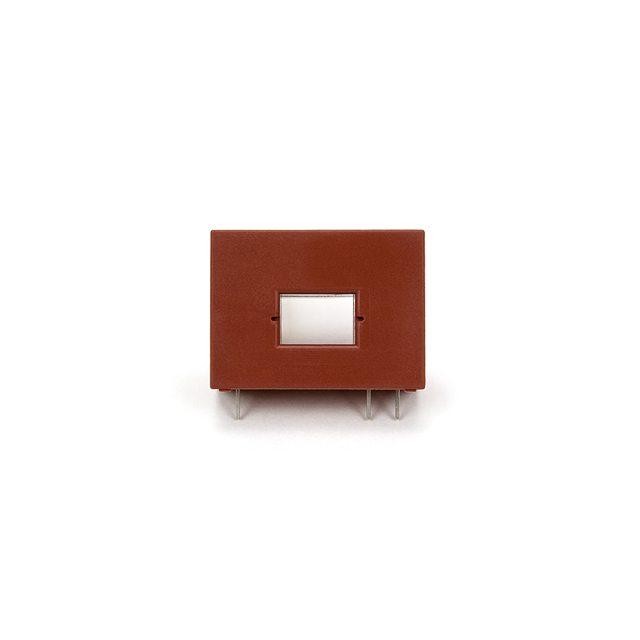

T60404N4646X100

Manufacturer :

VACUUMSCHMELZE GmbH & Co. KG.

Product Category :

Current Sensors

Frequency Range :

DC to 200 kHz

Operating Temperature :

-40°C ~ 85°C (TA)

Brand :

VACUUMSCHMELZE

Product Status :

Active

Output :

Ratiometric, Current

Packaging :

Tray

Product Category :

Board Mount Current Sensors

Height :

27.6 mm

Core Size :

8.5 mm X 12.7 mm

Response Time :

1 us

Current Rating :

100 A

Linearity :

±0.1%

Mounting Type :

Through Hole

Manufacturer :

VACUUMSCHMELZE

Sensitivity :

-

Sensor Type :

Closed Loop

Product Type :

Current Sensors

Minimum Operating Temperature :

- 40 C

Length :

36.5 mm

Accuracy :

0.5 %

Operating Supply Voltage :

15 V

Polarization :

Unidirectional

Current - Supply (Max) :

18mA

Operating Temperature Range :

- 40 C to + 85 C

Voltage - Supply :

±11.4V ~ 15.75V

Number of Channels :

1

Package / Case :

Module, Single Pass Through

Subcategory :

Sensors

Width :

14.3 mm

Output Type :

Analog - Current

For Measuring :

AC/DC

Current - Sensing :

100A

Frequency :

DC ~ 200kHz

Maximum Operating Temperature :

+ 85 C

Package :

Box

Series :

T60404

RoHS :

Details
