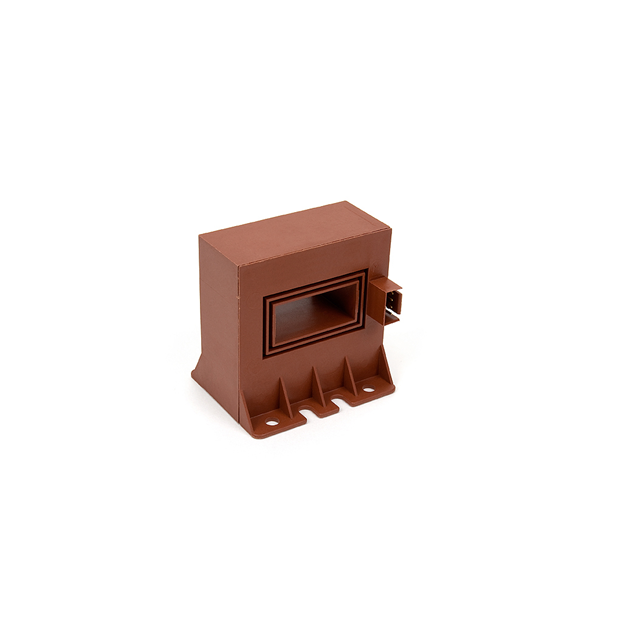

T60404N4644X054

Manufacturer :

VACUUMSCHMELZE GmbH & Co. KG.

Product Category :

Current Sensors

Package / Case :

Module, Single Pass Through

Operating Temperature :

-40°C ~ 70°C (TA)

Polarization :

Unidirectional

Sensitivity :

-

Sensor Type :

-

Packaging :

Tray

Operating Supply Voltage :

15 V

Mounting Type :

Chassis Mount

Height :

56 mm

Output :

Ratiometric, Current

RoHS :

Compliant

Number of Channels :

1

Brand :

VACUUMSCHMELZE

Current - Sensing :

700A

Current - Supply (Max) :

45mA

Frequency :

DC ~ 50kHz

Response Time :

1μs

Subcategory :

Sensors

Isolation Voltage :

1.7 kV

For Measuring :

-

Length :

56 mm

Voltage - Supply :

14.75V ~ 15.25V

Width :

46 mm

Manufacturer :

VACUUMSCHMELZE

Product Status :

Active

Accuracy :

±0.5%

Product Type :

Current Sensors

Current Rating :

700 A

Product Category :

Industrial Current Sensors

Minimum Operating Temperature :

- 40 C

Maximum Operating Temperature :

+ 70 C

Linearity :

±0.1%

Output Type :

233 mA

Frequency Range :

DC to 50 kHz

Type :

Current Sense Module

Package :

Box

Core Size :

13 mm X 30 mm

Series :

-
