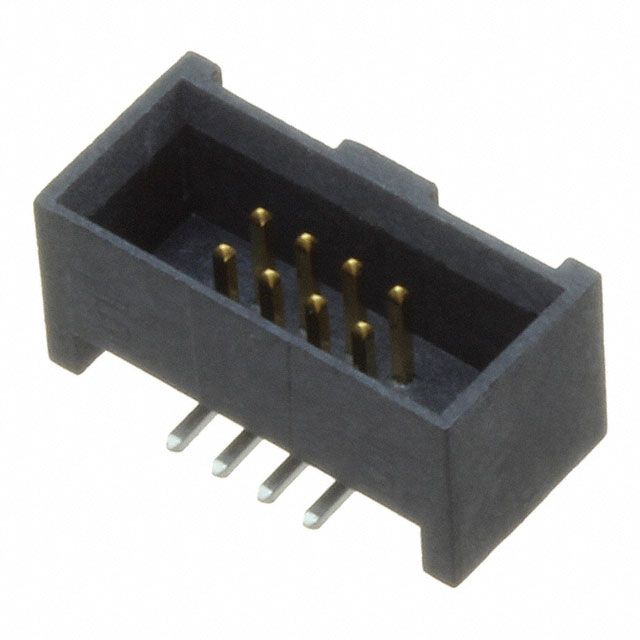

SHF-104-01-S-D-SM
Or copy the link below:
- Mfr.Part #
- SHF-104-01-S-D-SM
- Manufacturer
- Samtec, Inc.
- Package / Case
- Datasheet
- Download
- Description
- CONN HEADER SMD 8POS 1.27MM
- Stock
- 46,127
- In Stock ：
- 46,127
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- Samtec, Inc.
- Product Category :
- Headers, Male Pins
- Option :
- GENERAL PURPOSE
- Packaging :
- Bulk
- Total Number of Contacts :
- 8
- Mounting Type :
- Surface Mount
- RoHS Status :
- ROHS3 Compliant
- Contact Type :
- Male Pin
- Gender :
- Male
- MIL Conformance :
- No
- JESD-609 Code :
- e3
- Pitch - Mating :
- 0.050 1.27mm
- Row Spacing - Mating :
- 0.050 (1.27mm)
- Mixed Contacts :
- No
- Number of Rows :
- 2
- Material Flammability Rating :
- UL94 V-0
- Contact Finish - Post :
- Tin
- Contact Finish - Mating :
- Gold
- Shrouding :
- Shrouded - 4 Wall
- Termination :
- Solder
- Insulation Material :
- Liquid Crystal Polymer (LCP)
- ECCN Code :
- EAR99
- Insulation Color :
- Black
- Connector Type :
- Header
- Filter Feature :
- No
- Feature :
- Keying Slot
- DIN Conformance :
- No
- Factory Lead Time :
- 3 Weeks
- Fastening Type :
- Push-Pull
- Published :
- 2016
- Current Rating (Amps) :
- 3A
- Contact Shape :
- Square
- Operating Temperature :
- -55°C~125°C
- Number of Positions :
- 8
- IEC Conformance :
- No
- Radiation Hardening :
- No
- Series :
- SHF
- Contact Material :
- Phosphor Bronze
- Style :
- Board to Cable/Wire
- Insulation Height :
- 0.210 5.33mm
- Number of Positions Loaded :
- All
- Contact Length - Mating :
- 0.120 3.05mm
- Datasheets
- SHF-104-01-S-D-SM
SHF Series 2-Row Header Solder Phosphor Bronze Bulk Surface Mount Gold Liquid Crystal Polymer (LCP) 8-Position Board to Cable/Wire 0.210 5.33mm Height
SHF-104-01-S-D-SM Overview
It comes in Header packaging.The device's mounting type is Surface Mount.In order to package the product, a Bulk case is used.It belongs to the SHF Series of products.Its Keying Slot feature renders it more powerful in many ways.The device runs in -55°C~125°C Operating Temperature.
SHF-104-01-S-D-SM Features
SHF series
SHF-104-01-S-D-SM Applications
There are a lot of Samtec Inc.
SHF-104-01-S-D-SM Rectangular Connectors applications.
- Industrial Automation
- Transportation
- Embedded systems
- Datacom
- Communication
- Medical technology
- Military Technology
- Measuring & Control Technology
- Instrumentation
- Automotive Electronics
