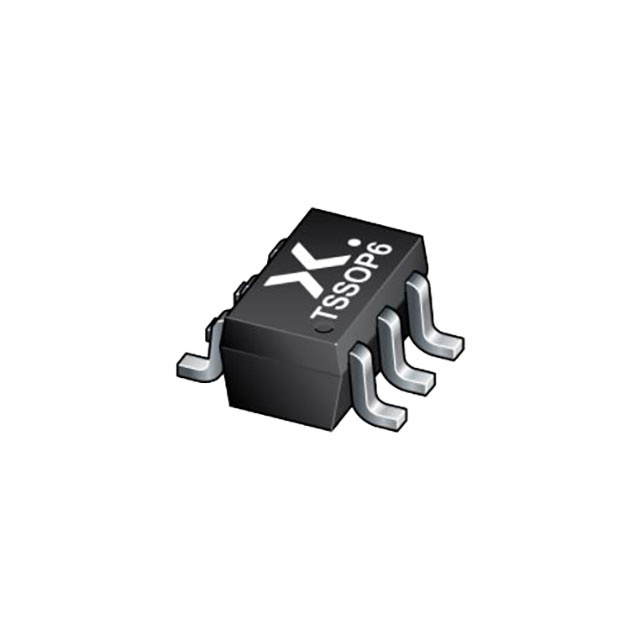

PMBT4401YSX

Manufacturer :

Nexperia

Product Category :

Transistors - Bipolar (BJT) - Single

Number of Elements :

2

Transition Frequency :

250MHz

Pin Count :

6

Transistor Application :

SWITCHING

Operating Temperature :

150°C TJ

Transistor Type :

NPN

JESD-30 Code :

R-PDSO-G6

Configuration :

SEPARATE, 2 ELEMENTS

Package / Case :

TO-236-3, SC-59, SOT-23-3

Published :

2015

Terminal Position :

Dual

Turn Off Time-Max (toff) :

250ns

Power - Max :

250mW

Packaging :

Tape and Reel (TR)

Polarity/Channel Type :

NPN

Max Power Dissipation :

250mW

Vce Saturation (Max) @ Ib, Ic :

750mV @ 50mA, 500mA

Mounting Type :

Surface Mount

DC Current Gain (hFE) (Min) @ Ic, Vce :

80 @ 10mA 1V

Series :

Automotive, AEC-Q101

Current - Collector Cutoff (Max) :

50nA ICBO

Terminal Form :

Gull wing

Time@Peak Reflow Temperature-Max (s) :

NOT SPECIFIED

Turn On Time-Max (ton) :

35ns

Collector Emitter Voltage (VCEO) :

750mV

Peak Reflow Temperature (Cel) :

NOT SPECIFIED

Factory Lead Time :

4 Weeks

Collector Emitter Breakdown Voltage :

40V

Transistor Element Material :

SILICON

Moisture Sensitivity Level (MSL) :

1 (Unlimited)

Number of Terminations :

6

Frequency - Transition :

250MHz

Max Collector Current :

600mA

Reference Standard :

AEC-Q101; IEC-60134

RoHS Status :

ROHS3 Compliant

Mount :

Surface Mount
