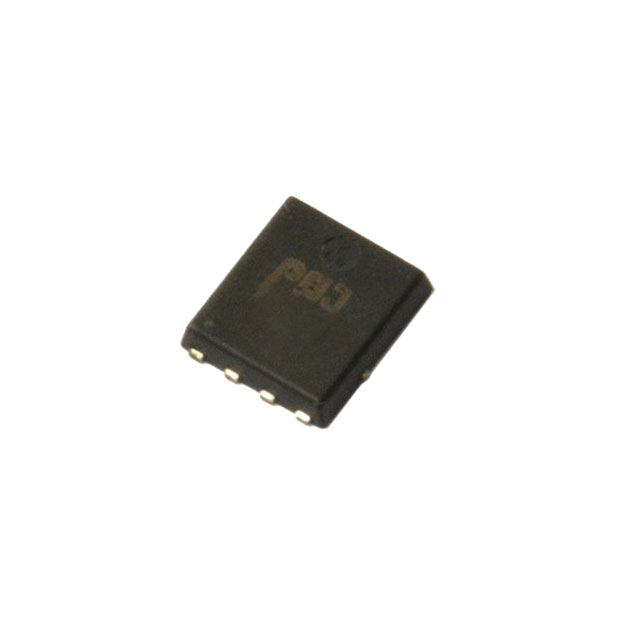

P3M06300D5
Or copy the link below:
- Mfr.Part #
- P3M06300D5
- Manufacturer
- PN Junction Semiconductor
- Package / Case
- DFN5*6
- Datasheet
- Download
- Description
- SICFET N-CH 650V 9A DFN5*6
- Stock
- 1,000
- In Stock ：
- 1,000
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- PN Junction Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Power Dissipation (Max) :
- 26W
- Supplier Device Package :
- DFN5*6
- Mounting Type :
- Surface Mount
- Current - Continuous Drain (Id) @ 25°C :
- 9A
- FET Type :
- N-Channel
- Vgs(th) (Max) @ Id :
- 2.2V @ 5mA
- Vgs (Max) :
- +20V, -8V
- Drain to Source Voltage (Vdss) :
- 650 V
- Series :
- P3M
- FET Feature :
- -
- Technology :
- SiCFET (Silicon Carbide)
- Rds On (Max) @ Id, Vgs :
- 500mOhm @ 4.5A, 15V
- Package :
- Tape and Reel (TR)
- Package / Case :
- DFN5*6
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Drive Voltage (Max Rds On, Min Rds On) :
- 15V
- Product Status :
- Active
- Datasheets
- P3M06300D5
SiCFET (Silicon Carbide) N-Channel 500mOhm @ 4.5A, 15V +20V, -8V 650 V DFN5*6
P3M06300D5 Overview
For this transistor to work, a voltage 650 V is required between drain and source (Vdss).
P3M06300D5 Features
a 650 V drain to source voltage (Vdss)
P3M06300D5 Applications
There are a lot of ON Semiconductor
P3M06300D5 applications of single MOSFETs transistors.
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
