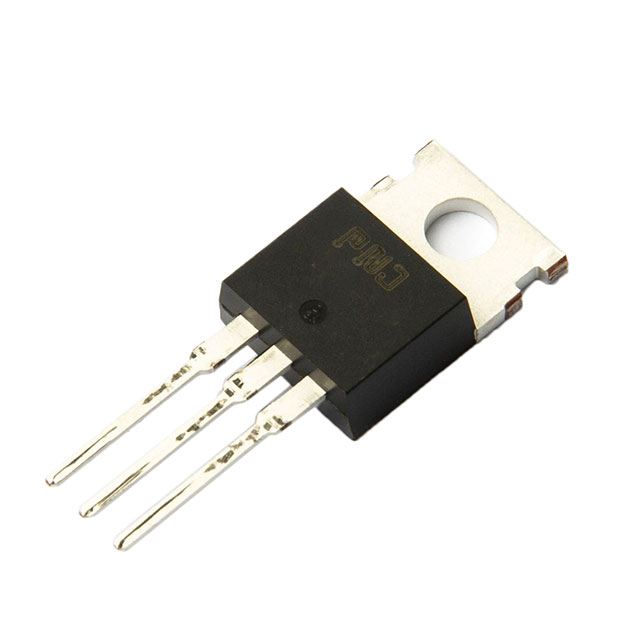

P3M06120T3
Or copy the link below:
- Mfr.Part #
- P3M06120T3
- Manufacturer
- PN Junction Semiconductor
- Package / Case
- TO-220-2
- Datasheet
- Download
- Description
- SICFET N-CH 650V 29A TO-220-3
- Stock
- 10
- In Stock ：
- 10
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- PN Junction Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Technology :
- SiCFET (Silicon Carbide)
- FET Type :
- N-Channel
- Package :
- Tube
- Drive Voltage (Max Rds On, Min Rds On) :
- 15V
- FET Feature :
- -
- Product Status :
- Active
- Power Dissipation (Max) :
- 153W
- Mounting Type :
- Through Hole
- Vgs(th) (Max) @ Id :
- 2.2V @ 5mA (Typ)
- Current - Continuous Drain (Id) @ 25°C :
- 29A
- Rds On (Max) @ Id, Vgs :
- 158mOhm @ 10A, 15V
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Vgs (Max) :
- +20V, -8V
- Drain to Source Voltage (Vdss) :
- 650 V
- Supplier Device Package :
- TO-220-2L
- Series :
- P3M
- Package / Case :
- TO-220-2
- Datasheets
- P3M06120T3
SiCFET (Silicon Carbide) N-Channel 158mOhm @ 10A, 15V +20V, -8V 650 V TO-220-2
P3M06120T3 Overview
For this transistor to work, a voltage 650 V is required between drain and source (Vdss).
P3M06120T3 Features
a 650 V drain to source voltage (Vdss)
P3M06120T3 Applications
There are a lot of ON Semiconductor
P3M06120T3 applications of single MOSFETs transistors.
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
- Battery Protection Circuit
- Telecom 1 Sever Power Supplies
