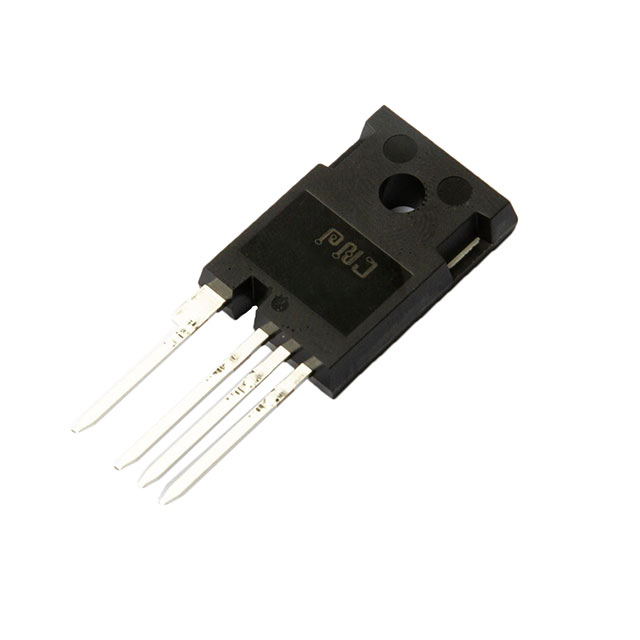

P3M06025K4
Or copy the link below:
- Mfr.Part #
- P3M06025K4
- Manufacturer
- PN Junction Semiconductor
- Package / Case
- TO-247-4
- Datasheet
- Download
- Description
- SICFET N-CH 650V 97A TO247-4
- Stock
- 36,064
- In Stock ：
- 36,064
Request A Quote(RFQ)
- * Fullname:
- * Company:
- * E-Mail:
- Phone:
- Comment:
- * Quantity:
- Manufacturer :
- PN Junction Semiconductor
- Product Category :
- Transistors - FETs, MOSFETs - Single
- Rds On (Max) @ Id, Vgs :
- 34mOhm @ 50A, 15V
- Operating Temperature :
- -55°C ~ 175°C (TJ)
- Technology :
- SiCFET (Silicon Carbide)
- Current - Continuous Drain (Id) @ 25°C :
- 97A
- Vgs(th) (Max) @ Id :
- 2.2V @ 50mA (Typ)
- Package / Case :
- TO-247-4
- Series :
- P3M
- Supplier Device Package :
- TO-247-4L
- FET Feature :
- -
- Power Dissipation (Max) :
- 326W
- Mounting Type :
- Through Hole
- Drive Voltage (Max Rds On, Min Rds On) :
- 15V
- Product Status :
- Active
- FET Type :
- N-Channel
- Vgs (Max) :
- +20V, -8V
- Package :
- Tube
- Drain to Source Voltage (Vdss) :
- 650 V
- Datasheets
- P3M06025K4
SiCFET (Silicon Carbide) N-Channel 34mOhm @ 50A, 15V +20V, -8V 650 V TO-247-4
P3M06025K4 Overview
Single MOSFETs transistor is necessary to have a drain to source voltage (Vdss) of 650 V.
P3M06025K4 Features
a 650 V drain to source voltage (Vdss)
P3M06025K4 Applications
There are a lot of ON Semiconductor
P3M06025K4 applications of single MOSFETs transistors.
- Lighting
- Uninterruptible Power Supply
- AC-DC Power Supply
- Synchronous Rectification for ATX 1 Server I Telecom PSU
- Motor drives and Uninterruptible Power Supplies
- Micro Solar Inverter
- DC/DC converters
- Power Tools
- Motor Drives and Uninterruptible Power Supples
- Synchronous Rectification
