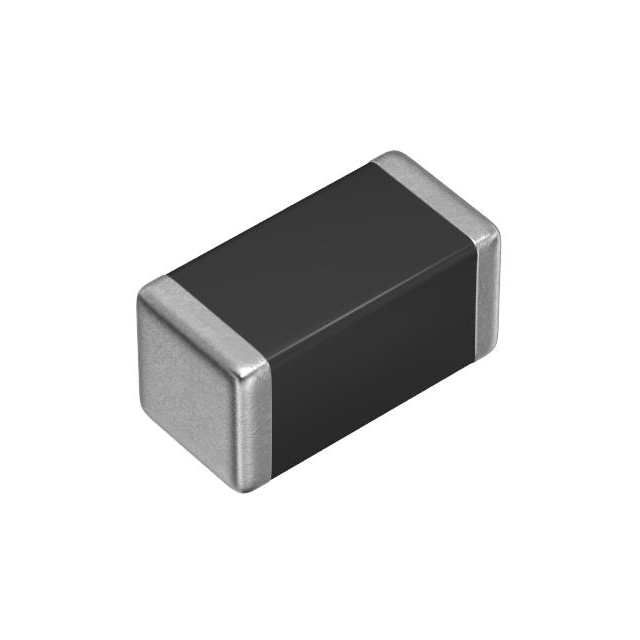

MLJ1005HXGR16JTD0B

Manufacturer :

TDK Corporation

Product Category :

Fixed Inductors

Mounting Style :

PCB Mount

Height :

0.5 mm

Size / Dimension :

0.039" L x 0.024" W (1.00mm x 0.60mm)

Product Status :

Active

Q @ Freq :

14 @ 13.56MHz

Package :

Digi-Reel?

Saturation Current :

-

Ratings :

-

Supplier Device Package :

0402

Core Material :

Ferrite

Inductance Frequency - Test :

13.56 MHz

Minimum Operating Temperature :

- 55 C

Inductance :

160 nH

Termination Style :

SMD/SMT

Subcategory :

Inductors, Chokes and Coils

Current Rating (Amps) :

600 mA

Features :

-

DC Resistance (DCR) :

754mOhm Max

RoHS :

Details

Product Type :

Fixed Inductors

Packaging :

MouseReel

Height - Seated (Max) :

0.026" (0.65mm)

Shielding :

Shielded

Current - Saturation (Isat) :

-

Frequency - Self Resonant :

-

Mounting Type :

Surface Mount

Width :

0.5 mm

Brand :

TDK

Self Resonant Frequency :

-

Termination :

Standard

Operating Temperature :

-55°C ~ 125°C

Maximum Operating Temperature :

+ 125 C

Series :

MLJ

Product :

RF Inductors

Product Width :

0.6mm

Diameter :

-

Application :

COMMERCIAL

Product Category :

RF Inductors - SMD

Type :

Multilayer

Length :

1 mm

Inductance Tolerance :

± 5%

Material - Core :

Ferrite

Package / Case :

0402 (1005 Metric)

Tolerance :

±5%

Product Length :

1mm

Product Height :

0.6mm

Manufacturer :

TDK

Test Frequency :

13.56 MHz
