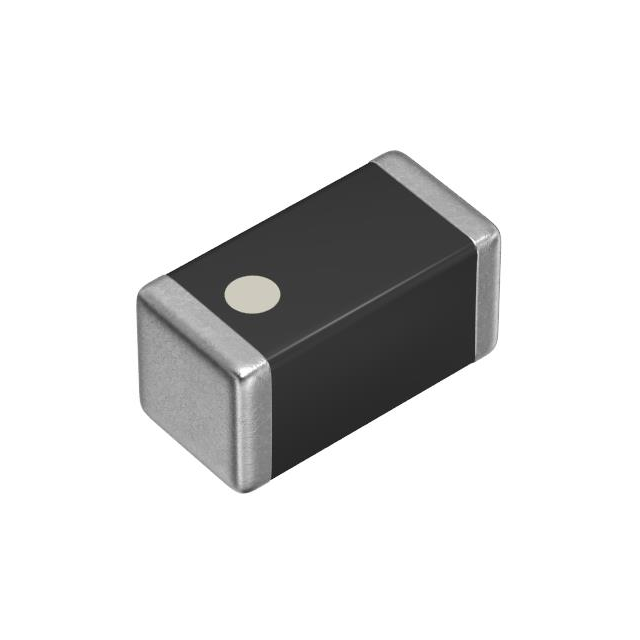

MLJ1005HXG56NETD0B

Manufacturer :

TDK Corporation

Product Category :

Fixed Inductors

Series :

MLJ

Supplier Device Package :

0402

Shielding :

Shielded

Core Material :

Ferrite

Maximum Operating Temperature :

+ 125 C

Application :

COMMERCIAL

Subcategory :

Inductors, Chokes and Coils

Saturation Current :

-

Minimum Operating Temperature :

- 55 C

Height - Seated (Max) :

0.026" (0.65mm)

Q @ Freq :

14 @ 13.56MHz

Length :

1 mm

Width :

0.6 mm

Product Height :

0.6mm

Current Rating (Amps) :

950 mA

Package / Case :

0402 (1005 Metric)

DC Resistance (DCR) :

325mOhm Max

Termination Style :

SMD/SMT

Mounting Style :

PCB Mount

Operating Temperature :

-55°C ~ 125°C

Features :

-

Current - Saturation (Isat) :

-

Inductance Tolerance :

± 4nH

Product Status :

Active

Product :

RF Inductors

Inductance Frequency - Test :

13.56 MHz

Diameter :

-

Size / Dimension :

0.039" L x 0.024" W (1.00mm x 0.60mm)

Frequency - Self Resonant :

-

Product Width :

0.6mm

Self Resonant Frequency :

-

Inductance :

56 nH

Test Frequency :

13.56 MHz

Material - Core :

Ferrite

Type :

Multilayer

Mounting Type :

Surface Mount

Product Length :

1mm

Product Type :

RF Inductors - Leaded

Height :

0.6 mm

Tolerance :

±4nH

Package :

Digi-Reel?

Termination :

Standard

Ratings :

-
