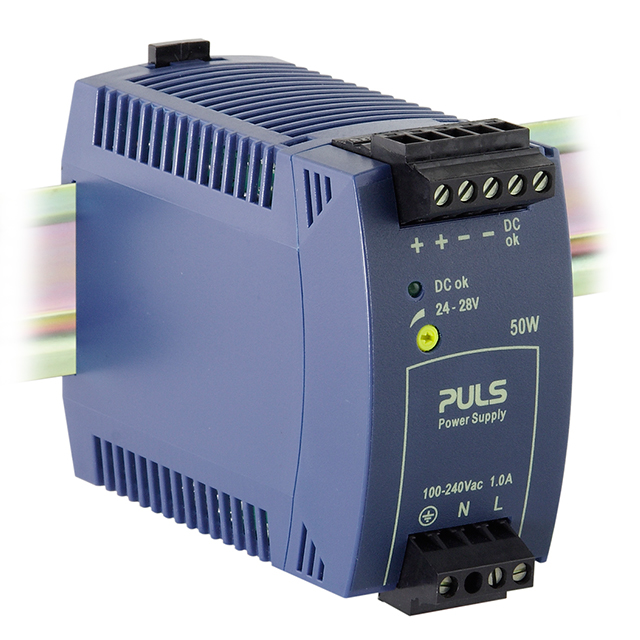

ML50.111

Manufacturer :

PULS

Product Category :

Moisture Sensitivity Level (MSL) :

Not Applicable

Mounting Type :

DIN Rail

Output Current :

2.1A

Depth :

75mm

Pbfree Code :

yes

Size / Dimension :

3.58Lx1.77W x 2.95 H 91.0mmx45.0mmx75.0mm

Min Output Voltage :

24V

Input Voltage-Nom :

100V

Current - Output (Max) :

2.1A

Additional Feature :

ALSO AVAILABLE WITH 85 TO 375 DC INPUT VOLATGE; ALSO AVAIALBE WITH DIFFE MOUNITING AND DIFF MAX TEMP

Terminal Form :

UNSPECIFIED

Number of Functions :

1

Number of Outputs :

1

Power (Watts) :

50W

Max Input Voltage :

240V

Mount :

DIN Rail

Approval Agency :

CB, CE, cULus, cURus

Total Power Output-Max :

50W

Trim/Adjustable Output :

yes

Terminal Position :

UNSPECIFIED

Feature :

Adjustable Output, DC Input Capable, Load Sharing, Universal Input

Efficiency :

88.5%

Operating Temperature :

-10°C~70°C With Derating

Voltage - Input :

85V~264VAC

Factory Lead Time :

2 Weeks

Max Output Voltage :

28V

Applications :

ITE (Commercial)

Type :

Enclosed

Min Input Voltage :

100V

Number of Terminations :

10

Output Voltage :

24V

RoHS Status :

RoHS Compliant

Weight :

240g

Series :

MiniLine (50W)
